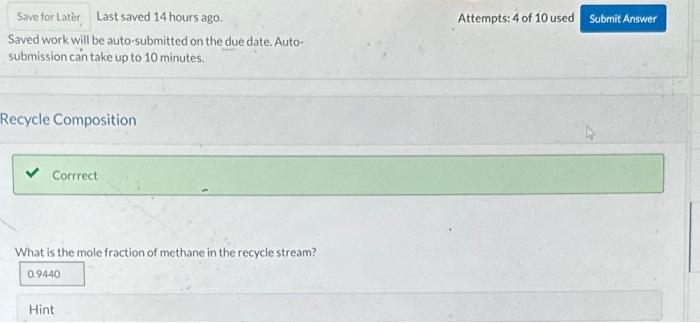

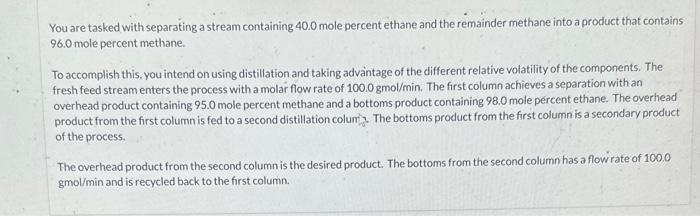

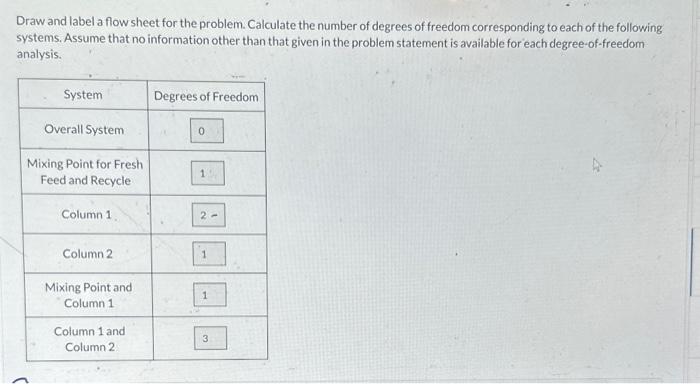

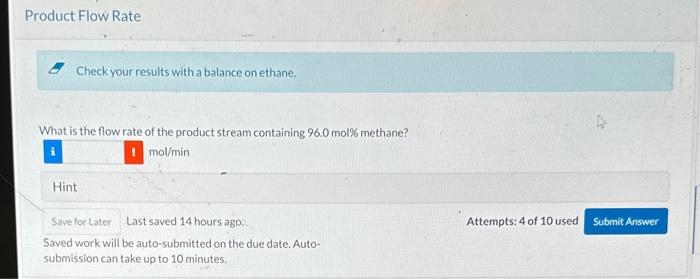

You are tasked with separating a stream containing 40.0 mole percent ethane and the remainder methane into a product that contains 96.0 mole percent methane. To accomplish this, you intend on using distillation and taking advntage of the different relative volatility of the components. The fresh feed stream enters the process with a molar flow rate of 100.0gmol/min. The first column achieves a separation with an overhead product containing 95.0 mole percent methane and a bottoms product containing 98.0 mole percent ethane. The overhead product from the first column is fed to a second distillation colum? The bottoms product from the first column is a secondary product of the process. The overhead product from the second column is the desired product. The bottoms from the second column has a flow rate of 100.0 gmol/min and is recycled back to the first column. Draw and label a flow sheet for the problem. Calculate the number of degrees of freedom corresponding to each of the following systems. Assume that no information other than that given in the problem statement is available for each degree-of-freedom analysis. Check your results with a balance on ethane. What is the flow rate of the product stream containing 96.0 mol methane? mol/min Hint Last saved 14 hours ago. Attempts: 4 of 10 used Saved work will be auto-submitted on the due date. Auto- submission can take up to 10 minutes. Saved work will be auto-submitted on the due date. Autosubmission cn take up to 10 minutes. Recycle Composition What is the mole fraction of methane in the recycle stream
