You are to design, write, assemble, and simulate an assembly language program which will

generate sum of integer squares numbers. Giving is an array NARR of byte$-$long numbers $($with a

$FF sentinel$).$ Each element in the table corresponds to the end value N of the sum of squares to

be generated $($as defined in Lab$3).$ The actual calculation of the corresponding $4-$byte sum of

integer squares has to be implemented in a subroutine. The $4-$byte sum has to be passed back to

the main program, which stores it consecutively in the RESARR array.

PLEASE NOTE:

$1.$ The complete sum calculation has to be done in the subroutine using the algorithm defined in

Lab$3,$ resulting in two nested loops, inside a single subroutine. Using any other algorithm,

implementation, multiplication, or the MUL instruction instead is NOT allowed and will

result in $50$ lost points.

$2.$ Your program should work for any N value, not just the ones given in the table. Also, it

should work for any sentinel value, not just for $FF$.$

$3.$ Your program is NOT allowed to change the numbers stored in NARR.

$4.$ All multi$-$byte data items are in Big Endian format $($including all program variables$)$

$5.$ You have to use the program skeleton provided for Lab$4.$ Do not change the data section or

you will lose points! This means: do not change the 'ORG $B$000\text{'}$ and 'ORG $B$010\text{'}$

statements or the memory locations variables are stored $($i$.$e$.,$ $B$000$ for NARR and $B$010$

for RESARR$).$ If you need to define additional variables, please add them in the appropriate

places.

$6.$ You are allowed to use parts of your LAB$3$ or parts of the official LAB$3$ solution.

$7.$ You are allowed to declare static variables in your subroutine $($through RMB$,$ FCB$,$ FDB$).$

$8.$ Your subroutine should only have one exit point. This means that only a single RTS

instruction at the end of the subroutine is allowed.

$9.$ You must terminate your program correctly using the STOP instruction.

$10.$ The main program must only have one exit point $($i$.$e$.,$ only one STOP instruction at the end

of the main program is allowed$).$

$11.$ You do not have to optimize your program or algorithm for speed.

$12.$ You have to provide a pseudo$-$code solution for your main program AND your subroutine. In

your pseudo codes, do NOT use a for loop, but either a while or a do$-$until structure to

implement a loop. Also, do NOT use any $$goto$,$break$,$ or $$exit$$ statements in your

pseudo codes. The structure of your assembly program should match the structure of your

pseudo codes $1-$to$-1.$

$13.$ The main program should be a WHILE structure which goes through the NARR table and

sends the value to the subroutine during each iteration. The while structure will also check

for the Sentinel $($which is the $FF at the end of the tables$)$ at each iteration. The Sentinel is

NOT one of the data items and it should NOT be processed by the subroutine. The main

program must end the while loop when the $FF is encountered. For each subroutine call, the

subroutine will send back a $4-$byte result that has to be stored consecutively in the RESULT

table.

$$ You are not allowed to just manually count the number of elements in the table

and set up a fixed number in memory as a count variable.

$$ Your program should still work if the arrays are moved to different places in

memory $($do not use any fixed offsets$).$

$$ You don$$t have to copy the sentinel to the end of the RESULT array.

$$ Your program should work for any number of elements in the table. Thus, there

could be more than $255$ elements in the tables. Using the B$-$register as an array

index and the ABX$/$ABY instructions add this index to the pointers will therefore

not work.

$$ Your program should work with for any sentinel value, not just $FF$.$

$14.$ For each iteration, the main program should take a number from the NARR table and pass it

to the subroutine in a register $($call$-$by$-$value in register$).$ The subroutine performs the sum

calculation and produces a $4-$byte result. This result byte must be passed back to the main

program OVER THE STACK $($call$-$by$-$value over the stack$).$ The main program then

retrieves the four bytes from the stack and stores it in the RESULT array.

$$ Make sure that your program will not generate a stack underflow or overflow.

$$ ALL of the number processing must be done inside a single subroutine using the

algorithm from Lab$3.$

$$ Do not try to access values in a region of the stack that has already been closed.

$15.$ Preparation of parameter passing back to the main program $($i$.$e$.,$ opening hole on the stack

for the parameter$)$ needs to be done in the subroutine, not in the main program.

$16.$ Any assembler or simulator error$/$warning messages appearing when assembling$/$simulating

your submitted program will result in up to $25$ points lost.

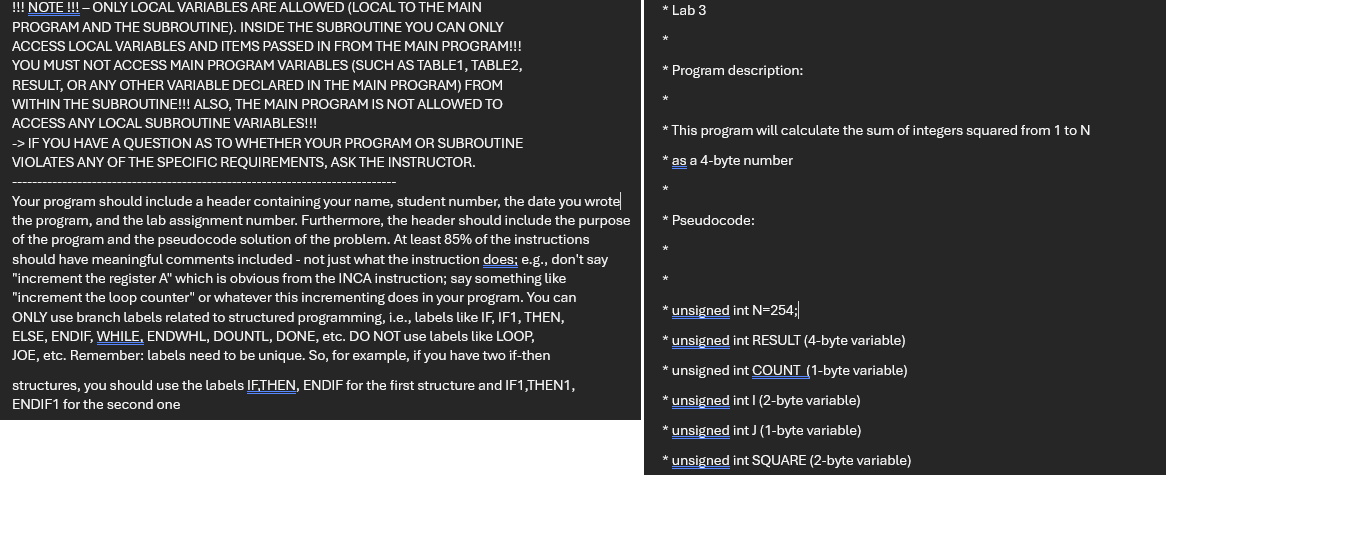

$!!$ NOTE $\backslash$# $-$ ONLY LOCAL VARIABLES ARE ALLOWED $($LOCAL TO THE MAIN PROGRAM AND THE SUBROUTINE$).$ INSIDE THE SUBROUTINE YOU CAN ONLY ACCESS LOCAL VARIABLES AND ITEMS PASSED IN FROMTHE MAIN PROGRAM!! YOU MUST NOT ACCESS MAIN PROGRAM VARIABLES $($SU
