Question:
Transcribed Image Text:

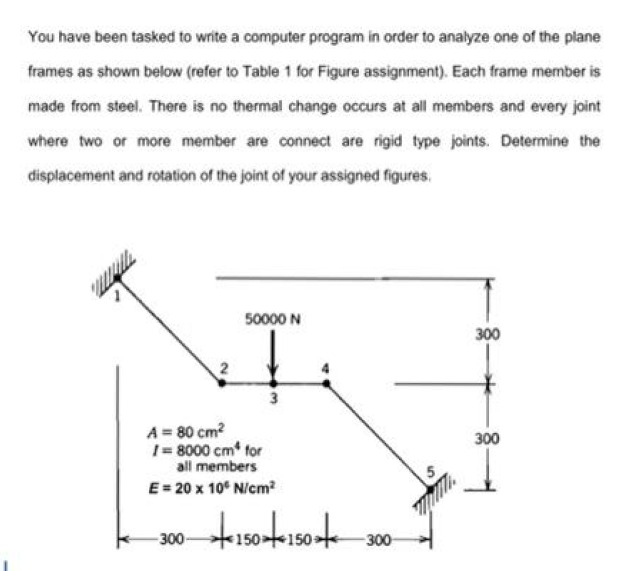

You have been tasked to write a computer program in order to analyze one of the plane frames as shown below (refer to Table 1 for Figure assignment). Each frame member is made from steel. There is no thermal change occurs at all members and every joint where two or more member are connect are rigid type joints. Determine the displacement and rotation of the joint of your assigned figures. 50000 N 300 2 A = 80 cm I=8000 cm for all members 3 E = 20 x 10 N/cm 300- 10*150*150>| < 300- 300 You have been tasked to write a computer program in order to analyze one of the plane frames as shown below (refer to Table 1 for Figure assignment). Each frame member is made from steel. There is no thermal change occurs at all members and every joint where two or more member are connect are rigid type joints. Determine the displacement and rotation of the joint of your assigned figures. 50000 N 300 2 A = 80 cm I=8000 cm for all members 3 E = 20 x 10 N/cm 300- 10*150*150>| < 300- 300
