Question: Your submission must include this completed worksheet as a . pdf file. One page only. Draw the Shear & Moment Diagrams and sketch the deflected

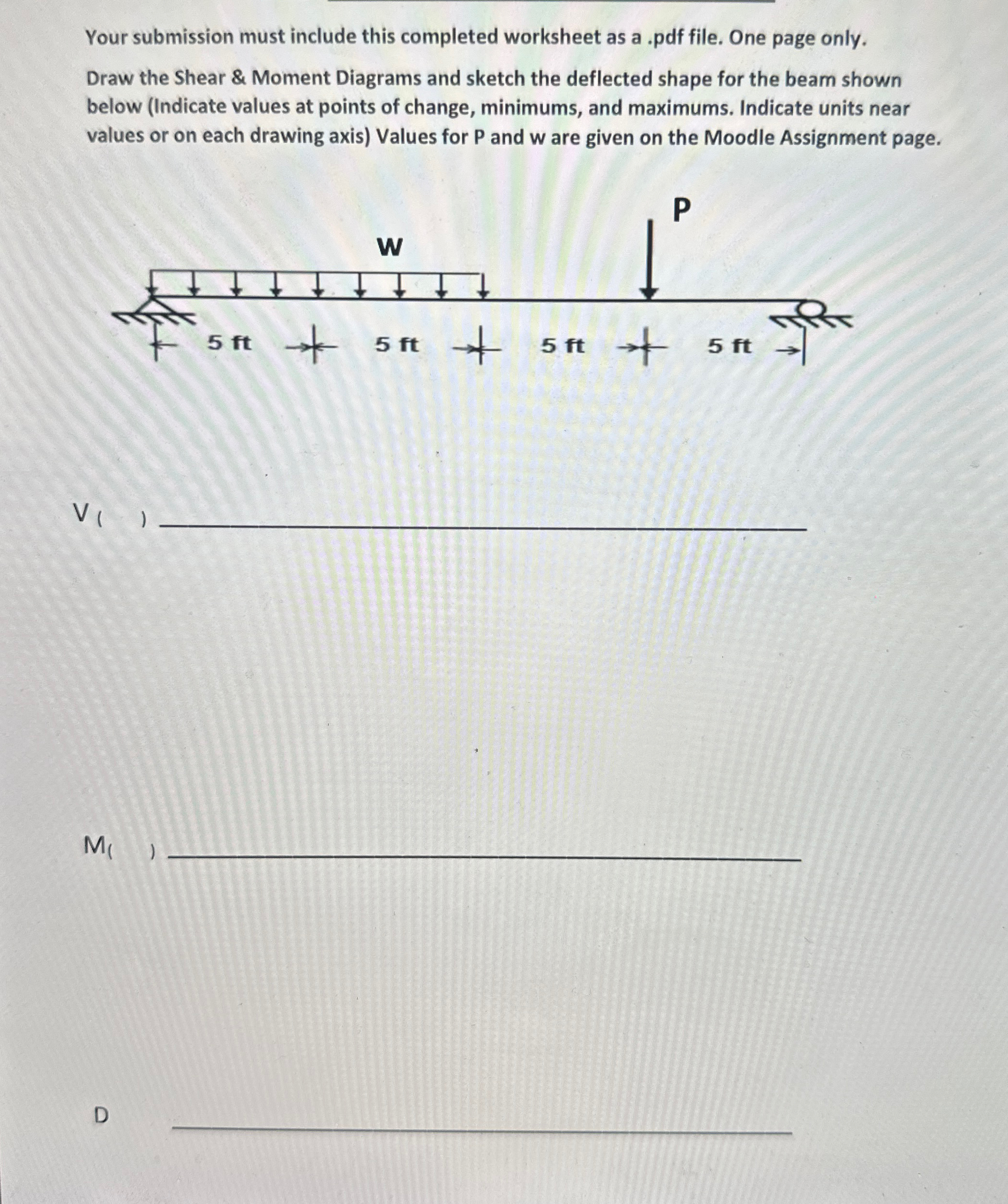

Your submission must include this completed worksheet as a .pdf file. One page only. Draw the Shear & Moment Diagrams and sketch the deflected shape for the beam shown below (Indicate values at points of change, minimums, and maximums. Indicate units near values or on each drawing axis.
P=6 kips
w=1000 lbs/ft
V1,)q,
q,
D q,
Your submission must include this completed

Step by Step Solution

There are 3 Steps involved in it
