Question: = Y(S) Q1. For the transfer function G(s) = U(S) input and the output for the following cases 10 55+1 where y(0) = u(0) =

= Y(S) Q1. For the transfer function G(s) = U(S) input

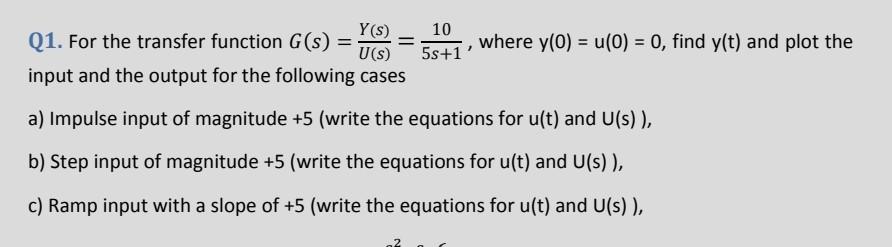

= Y(S) Q1. For the transfer function G(s) = U(S) input and the output for the following cases 10 55+1 where y(0) = u(0) = 0, find y(t) and plot the a) Impulse input of magnitude +5 (write the equations for u(t) and U(s) ), b) Step input of magnitude +5 (write the equations for u(t) and U(s) ), c) Ramp input with a slope of +5 (write the equations for u(t) and U(s) )

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
