The Howe bridge truss is subjected to the loading shown. Determine the force in members HD, CD,
Question:
The Howe bridge truss is subjected to the loading shown. Determine the force in members HD, CD, and GD, and state if the members are in tension orcompression.
Transcribed Image Text:

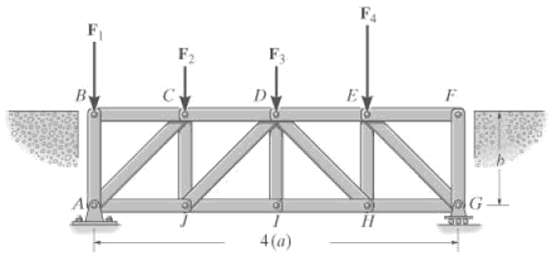

40 kN 30 kN 20 kN 20 kN 4 m D. 16 m, 4@4m
Fantastic news! We've Found the answer you've been seeking!
Step by Step Answer:
Answer rating: 63% (11 reviews)
Support Reactions Meth...View the full answer
Answered By
Niala Orodi
I am a competent and an experienced writer with impeccable research and analytical skills. I am capable of producing quality content promptly. My core specialty includes health and medical sciences, but I can competently handle a vast majority of disciplines.
5.00+
1+ Reviews
10+ Question Solved
Related Book For
Question Posted:
