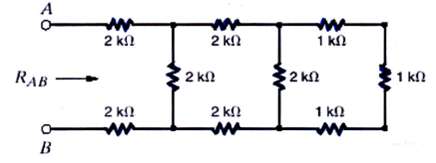

Question: Find RAB in the circuit in figure. 2 ki! 1 k 2 kn 1 kf 2 kn 2 kn RAB 2 kl! 2 kl? 1

Find RAB in the circuit in figure.

2 ki! 1 k 2 kn 1 kf 2 kn 2 kn

2 ki! 1 k 2 kn 1 kf 2 kn 2 kn RAB 2 kl! 2 kl? 1 kl

Step by Step Solution

★★★★★

3.43 Rating (162 Votes )

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock

2K 113K 12k R 1 2K 1... View full answer

blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Document Format (1 attachment)

Word file Icon

27-E-E-C-A (1050).docx

120 KBs Word File
