In the network in figure, V1 = 12V, find VS. 4 kl 2 k V1 1 k?
Question:

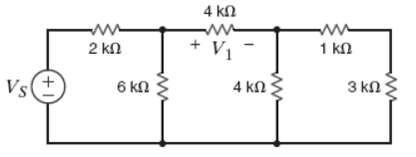

In the network in figure, V1 = 12V, find VS.
Transcribed Image Text:
4 kl 2 k V1 1 k? Vs 6 k2 4 k 3 kll ww
Fantastic news! We've Found the answer you've been seeking!
Step by Step Answer:
Answer rating: 43% (16 reviews)
I1 V14k 124k 3Ma R 2 1k 3k 4k R 2 2k V ...View the full answer
