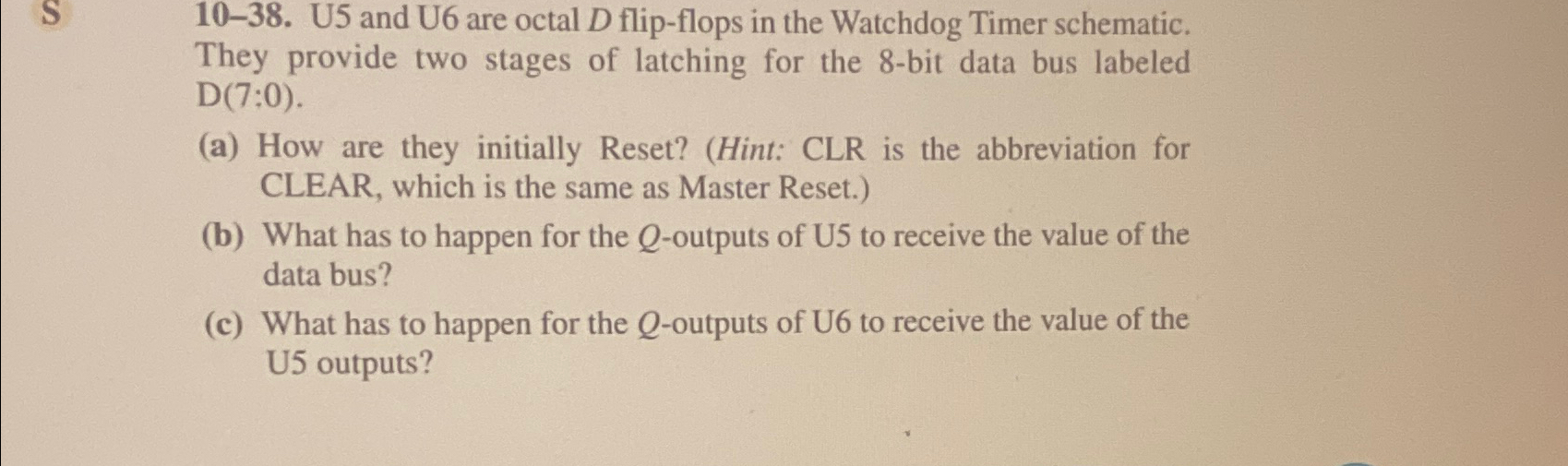

10-38. U5 and U6 are octal D flip-flops in the Watchdog Timer schematic. They provide two stages of latching for the 8-bit data bus labeled D(7;0).
(a) How are they initially Reset? (Hint: CLR is the abbreviation for CLEAR, which is the same as Master Reset.)
(b) What has to happen for the Q-outputs of U5 to receive the value of the data bus?
(c) What has to happen for the Q-outputs of U6 to receive the value of the U5 outputs?
