$10\mathrm{.}4$ LAB: Array of squares $-$ LDUR$/$STUR

Given an array of four integers, write a program that populates a new array with the square of the elements in the given array. Assume X$19$ stores the memory location of the first element of the given array, and X$20$ stores the memory location of the first element of the new array.

Hint: Each memory address is incremented by $8$ due to the doubleword addresses.

Ex: If X$19$ and X$20$ are initialized in the simulator as $4000$ and $5000,$ and the content of the given array is:

Addresses Data

$40001$

$40082$

$40163$

$40244$

then the content of the new array is:

Addresses Data

$50001$

$50084$

$50169$

$502416$

Note: Use the $\text{'}+\text{'}$ button under the Registers and Memory display to initialize X$19,$ X$20,$ and the four memory locations of the given array.

The loops is not stopping. Please help me fix it:

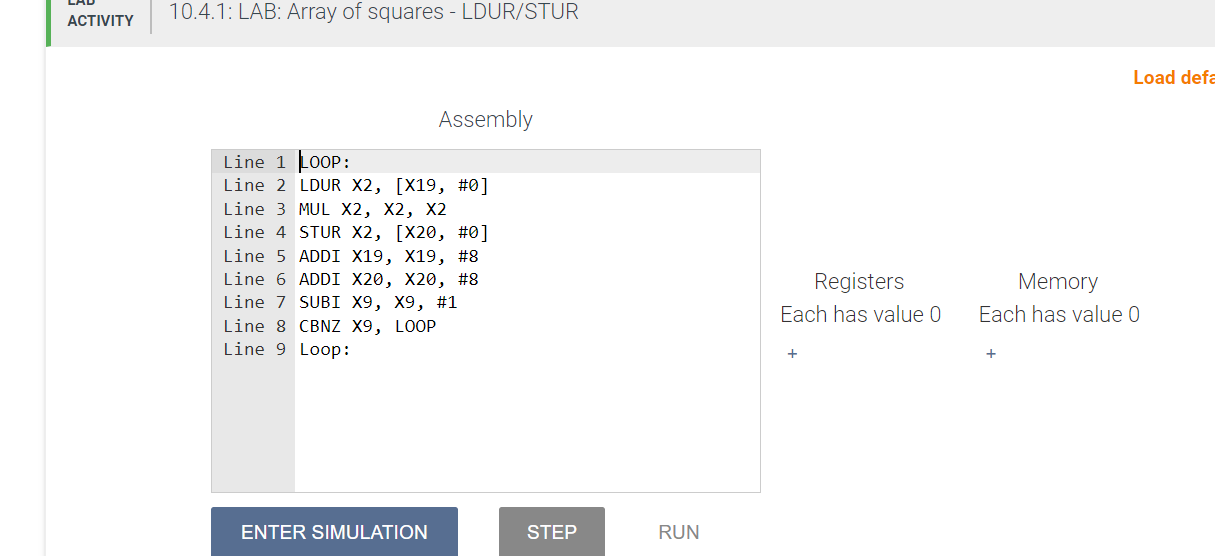

ACTIVITY

$10\mathrm{.}4\mathrm{.}1$: LAB: Array of squares $-$ LDUR$/$STUR

Load defa

Assembly

Line $1$ LOOP:

Line $2$ LDUR X$2,[$X$19,$ #$0]$

Line $3$ MUL X$2,$ X$2,$ X$2$

Line $4$ STUR X$2,[$X$20,$ #$0]$

Line $5$ ADDI X$19,$ X$19,$ #$8$

Line $6$ ADDI X$20,$ X$20,$ #$8$

Line $7$ SUBI X$9,$ X$9,$ #$1$

Line $8$ CBNZ X$9,$ LOOP

Line $9$ Loop:

Registers

Each has value $0$

Each has value $0$

$+$

STEP

RUN
