Question: ( 1 0 points ) Two cylindrical rod A B and B C are welded together and the assembly is loaded as shown. Rod A

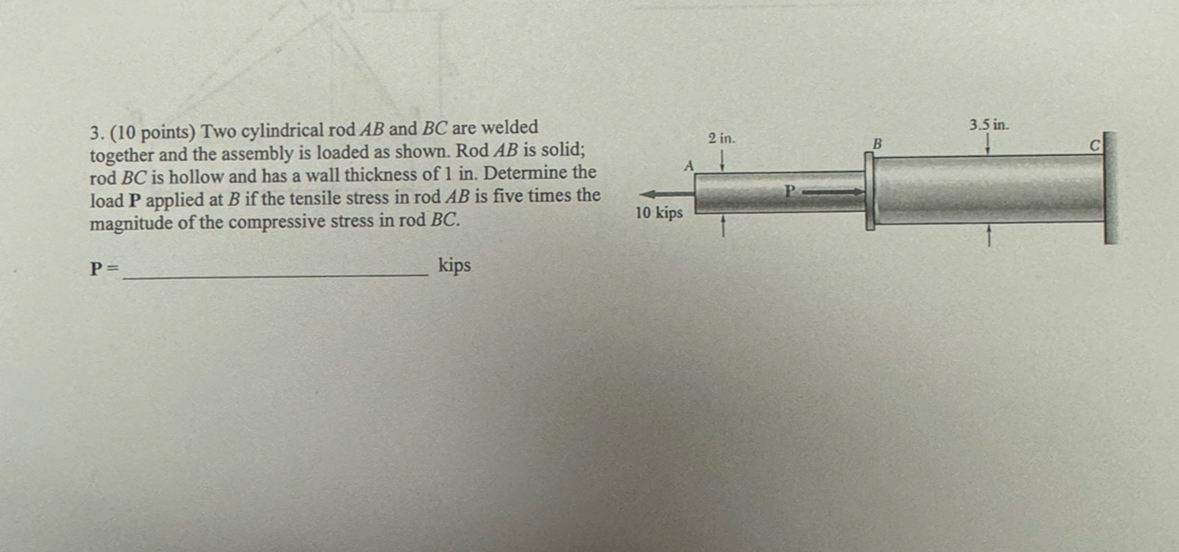

(10 points) Two cylindrical rod AB and BC are welded together and the assembly is loaded as shown. Rod AB is solid; rodBC is hollow and has a wall thickness of 1 in . Determine the load P applied at B if the tensile stress in rodAB is five times the magnitude of the compressive stress in rodBC.
P= kips
( 1 0 points ) Two cylindrical rod A B and B C

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
