Question: 1 . 1 2 For the Pratt bridge truss and loading shown, determine the average normal stress in member ( B E )

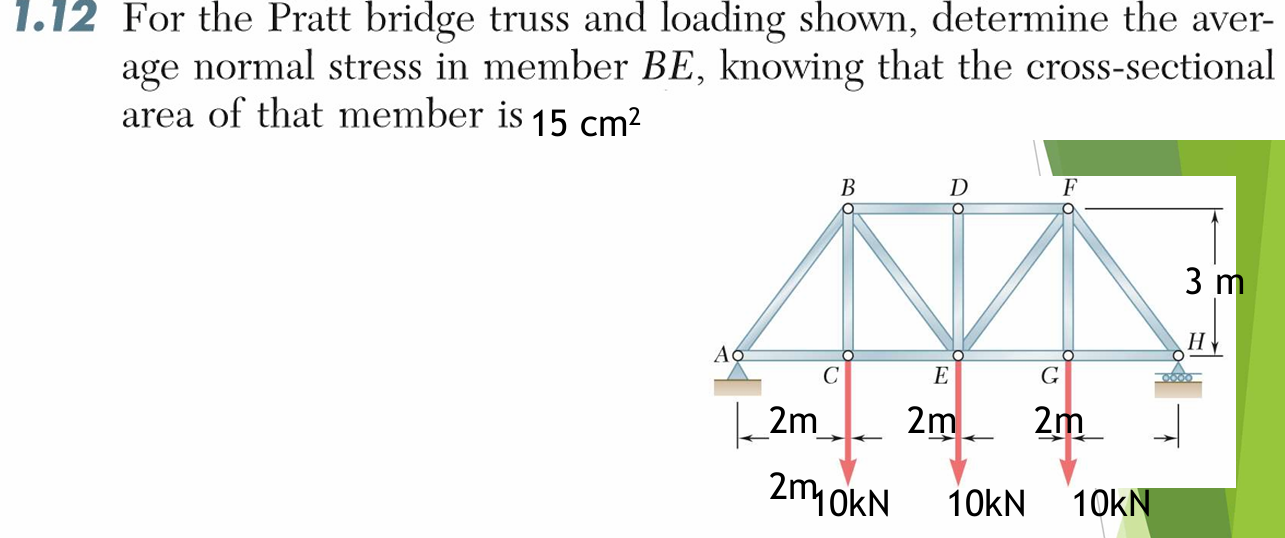

1.12 For the Pratt bridge truss and loading shown, determine the average normal stress in member \( B E \), knowing that the cross-sectional area of that member is \(15\mathrm{~cm}^{2}\)
1 . 1 2 For the Pratt bridge truss and loading

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
