Question: 1 . ( 1 2 points ) Design a system that outputs the maximum of data input samples. The system has an 8 - bit

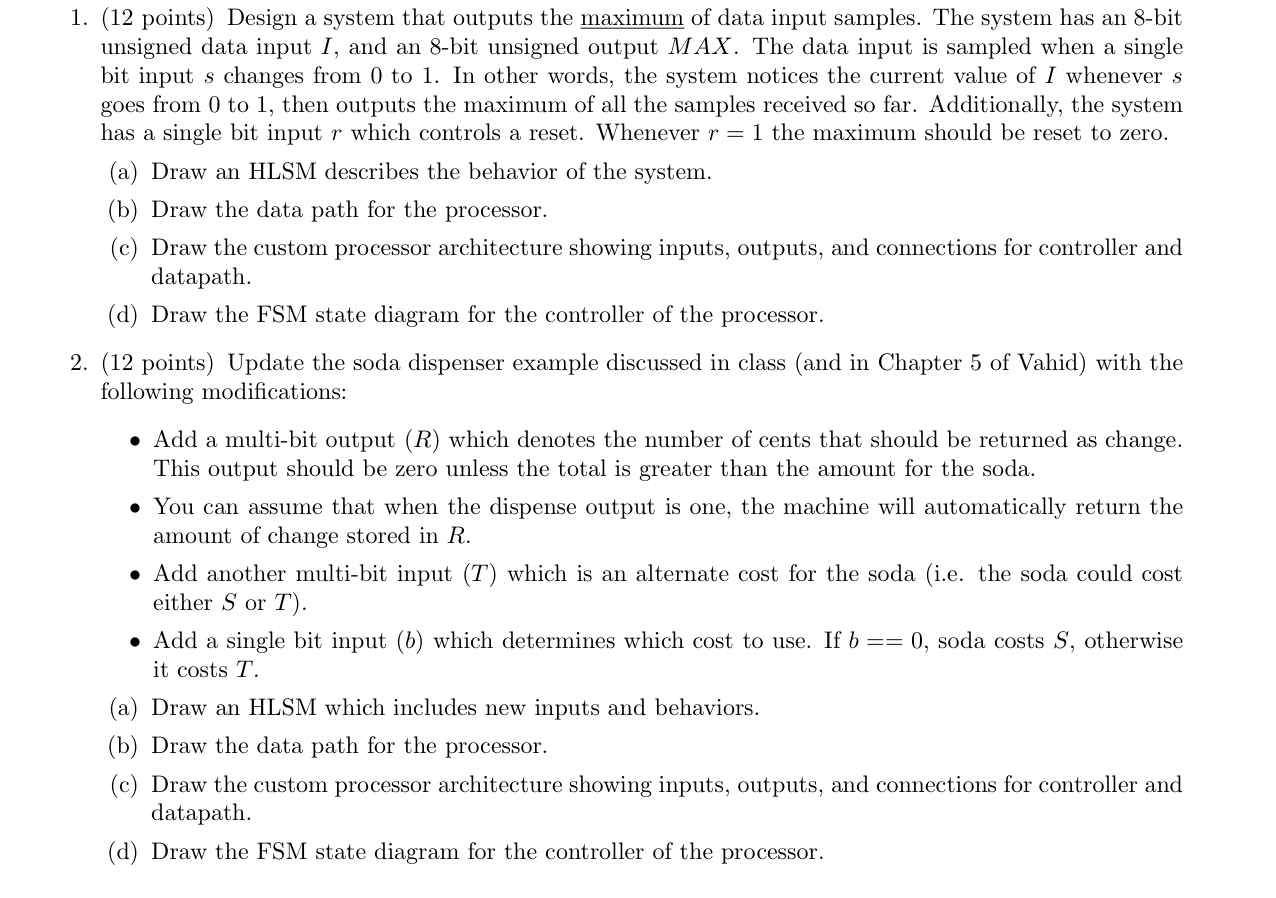

1.(12 points) Design a system that outputs the maximum of data input samples. The system has an 8-bit unsigned data input \( I \), and an 8-bit unsigned output \( M A X \). The data input is sampled when a single bit input \( s \) changes from 0 to 1. In other words, the system notices the current value of \( I \) whenever \( s \) goes from 0 to 1, then outputs the maximum of all the samples received so far. Additionally, the system has a single bit input \( r \) which controls a reset. Whenever \( r=1\) the maximum should be reset to zero.
(a) Draw an HLSM describes the behavior of the system.
(b) Draw the data path for the processor.
(c) Draw the custom processor architecture showing inputs, outputs, and connections for controller and datapath.
(d) Draw the FSM state diagram for the controller of the processor.
2.(12 points) Update the soda dispenser example discussed in class (and in Chapter 5 of Vahid) with the following modifications:
- Add a multi-bit output \((R)\) which denotes the number of cents that should be returned as change. This output should be zero unless the total is greater than the amount for the soda.
- You can assume that when the dispense output is one, the machine will automatically return the amount of change stored in \( R \).
- Add another multi-bit input \((T)\) which is an alternate cost for the soda (i.e. the soda could cost either \( S \) or \( T \)).
- Add a single bit input \((b)\) which determines which cost to use. If \( b==0\), soda costs \( S \), otherwise it costs \( T \).
(a) Draw an HLSM which includes new inputs and behaviors.
(b) Draw the data path for the processor.
(c) Draw the custom processor architecture showing inputs, outputs, and connections for controller and datapath.
(d) Draw the FSM state diagram for the controller of the processor. 3.(12 points) A soda manufacturing plant needs to monitor the amount of carbonated water in two storage vats (Storage X and Storage Y). Two volume sensors output the volume as 12-bit numbers. Design a system that will accept the two 12-bit inputs from the sensors and outputs the following values to a display using a single 12-bit output:
- Volume in Storage X
- Volume in Storage Y
- Total Volume in Storage X and Storage Y
The amount displayed should depend on a user's button input. Each time a button is pressed the display should cycle to the next option. In other words, the volume displayed will change each time a button input changes from 0 to 1).
(a) Draw an HLSM describes the behavior of the system.
(b) Draw the data path for the processor.
(c) Draw the custom processor architecture showing inputs, outputs, and connections for controller and datapath.
(d) Draw the FSM state diagram for the controller of the processor.
