Question: * 1 1 - 4 . Select the lightest - weight steel wide - flange beam from Appendix B that will safely support the machine

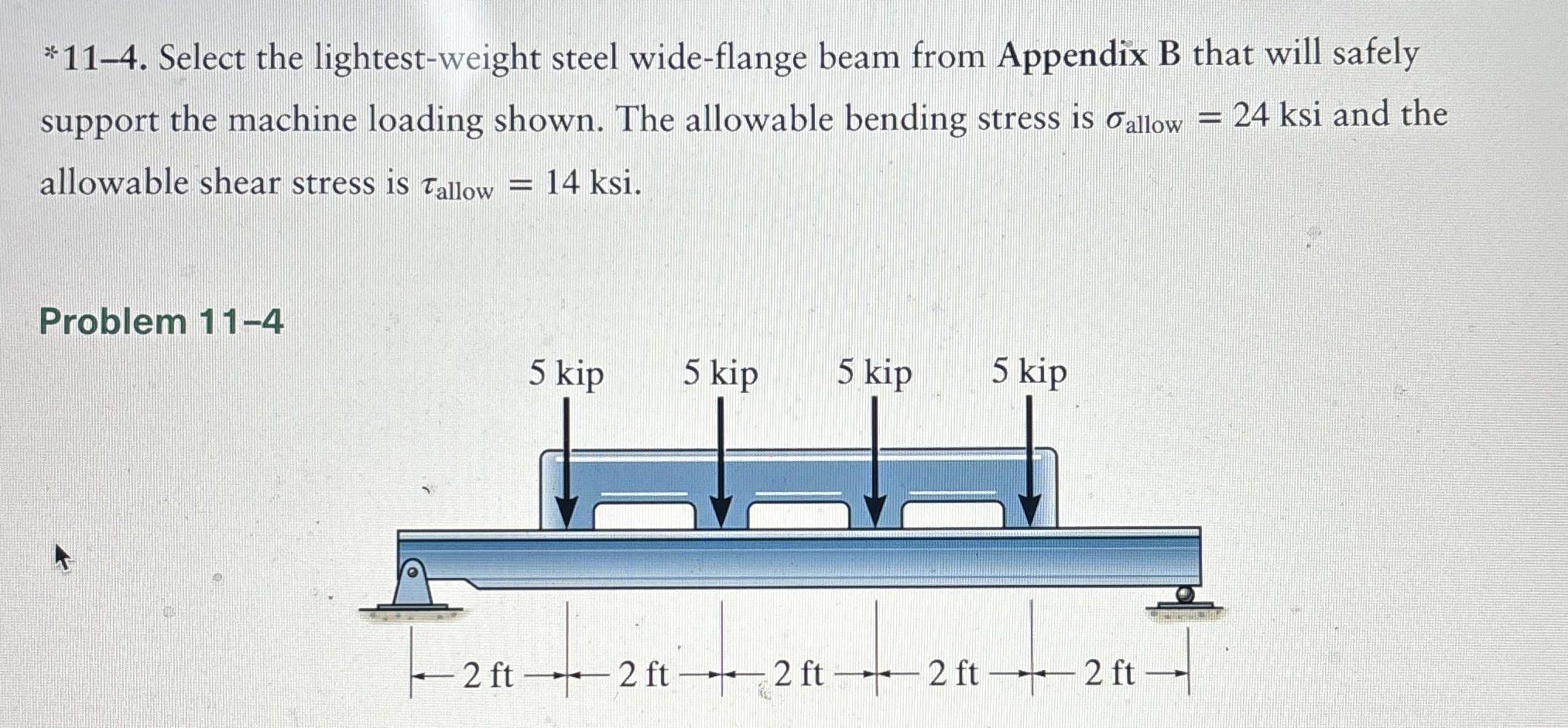

*11-4. Select the lightest-weight steel wide-flange beam from Appendix B that will safely support the machine loading shown. The allowable bending stress is allow=24ksi and the allowable shear stress is allow=14ksi.
Problem 11-4
* 1 1 - 4 . Select the lightest - weight steel

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
