Question: 1 . ( 1 5 pts ) A 1 0 0 0 - meter - long section of trapezoidal canal was surveyed and found to

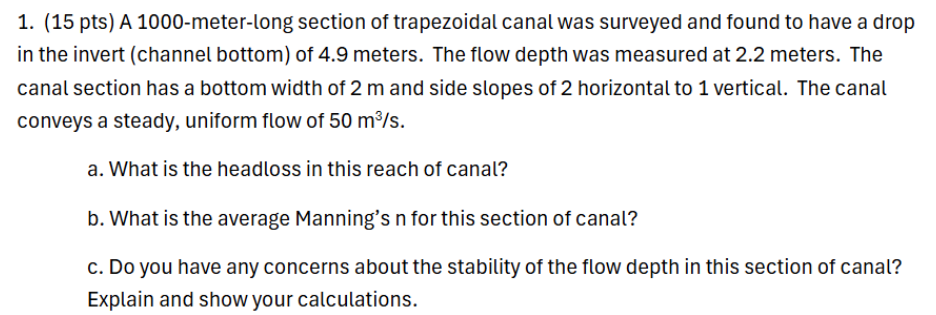

1.(15 pts) A 1000-meter-long section of trapezoidal canal was surveyed and found to have a drop in the invert (channel bottom) of 4.9 meters. The flow depth was measured at 2.2 meters. The canal section has a bottom width of 2 m and side slopes of 2 horizontal to 1 vertical. The canal conveys a steady, uniform flow of \(50\mathrm{~m}^{3}/\mathrm{s}\).
a. What is the headloss in this reach of canal?
b. What is the average Manning's n for this section of canal?
c. Do you have any concerns about the stability of the flow depth in this section of canal? Explain and show your calculations.
1 . ( 1 5 pts ) A 1 0 0 0 - meter - long section
