Question: ( 1 ) ( 3 0 pts ) Assuming that > > 1 , and | V B E | = 0 . 7 (

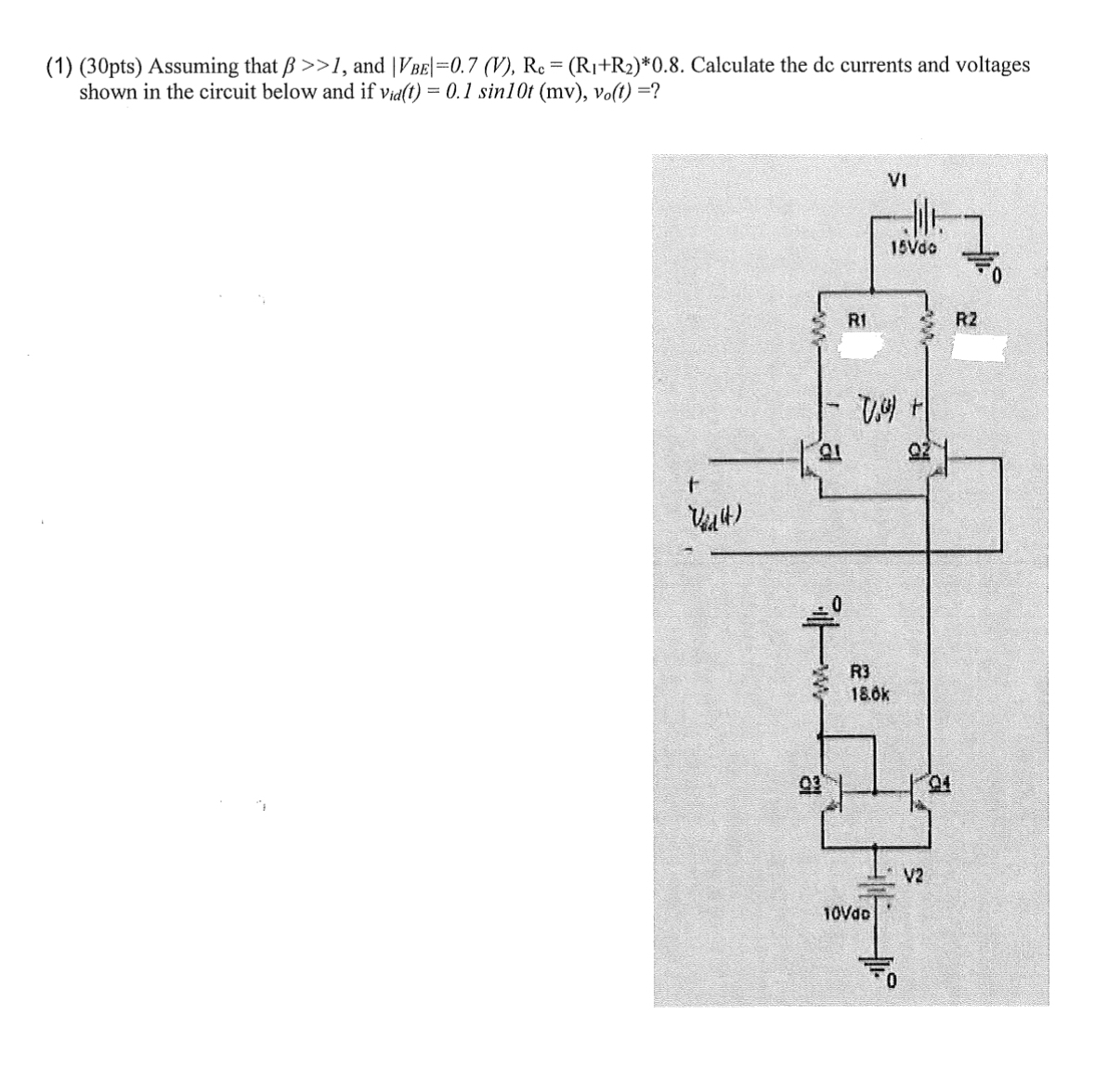

(1)(30pts) Assuming that >>1, and |VBE|=0.7(V),Rc=(R1+R2)**0.8. Calculate the dc currents and voltages shown in the circuit below and if vid(t)=0.1sin10t(mv),vo(t)=?
R1=15k R2=25k
( 1 ) ( 3 0 pts ) Assuming that > > 1 , and | V B
