Question: 1 3 - 9 . Use the moment - distribution method to determine the moment at each joint of the frame. Assume that E is

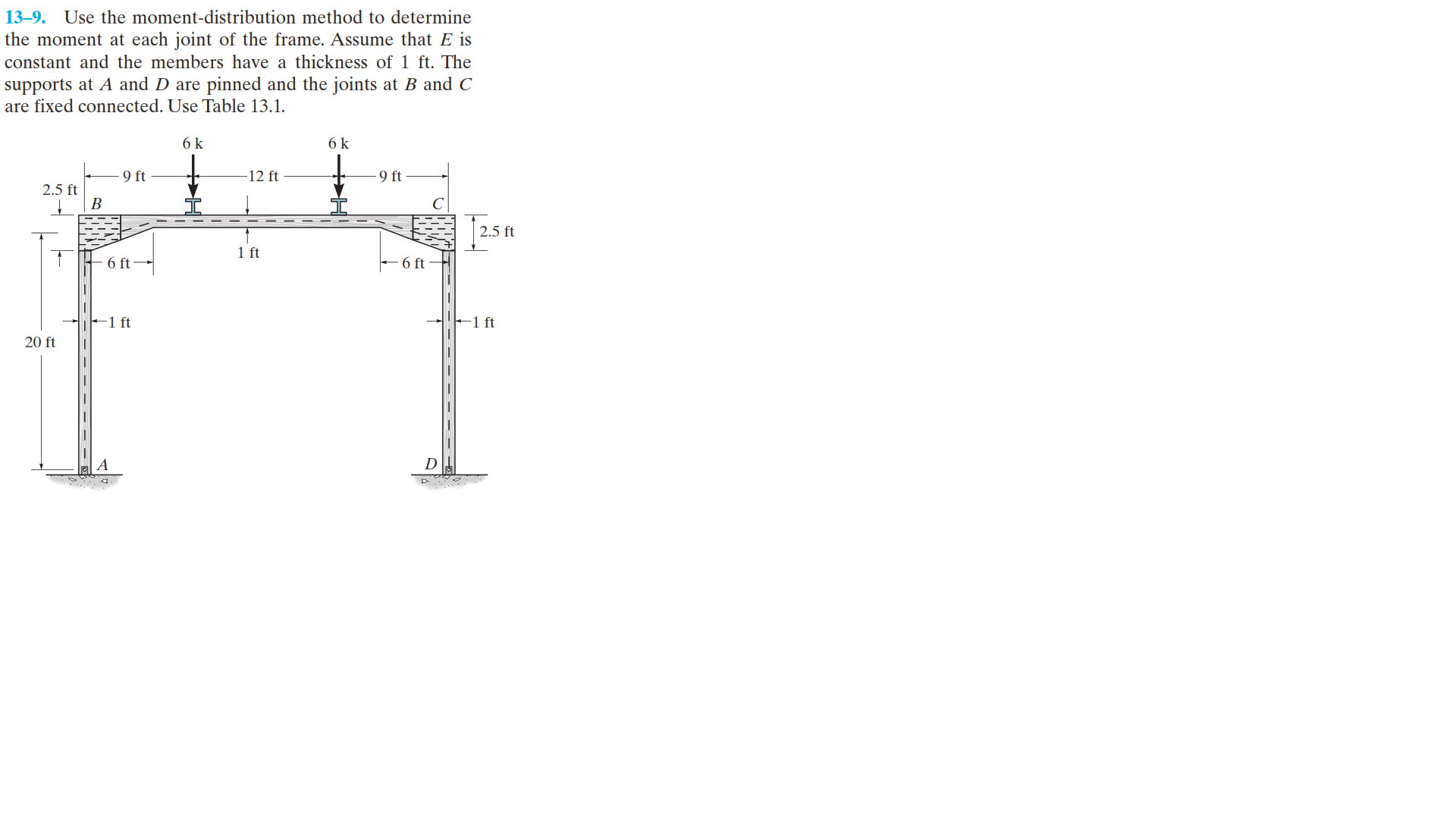

13-9. Use the moment-distribution method to determine the moment at each joint of the frame. Assume that E is constant and the members have a thickness of 1ft. The supports at A and D are pinned and the joints at B and C are fixed connected. Use Table 13.1.
1 3 - 9 . Use the moment - distribution method to

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
