Mark Allocation $[40$ marks$]$

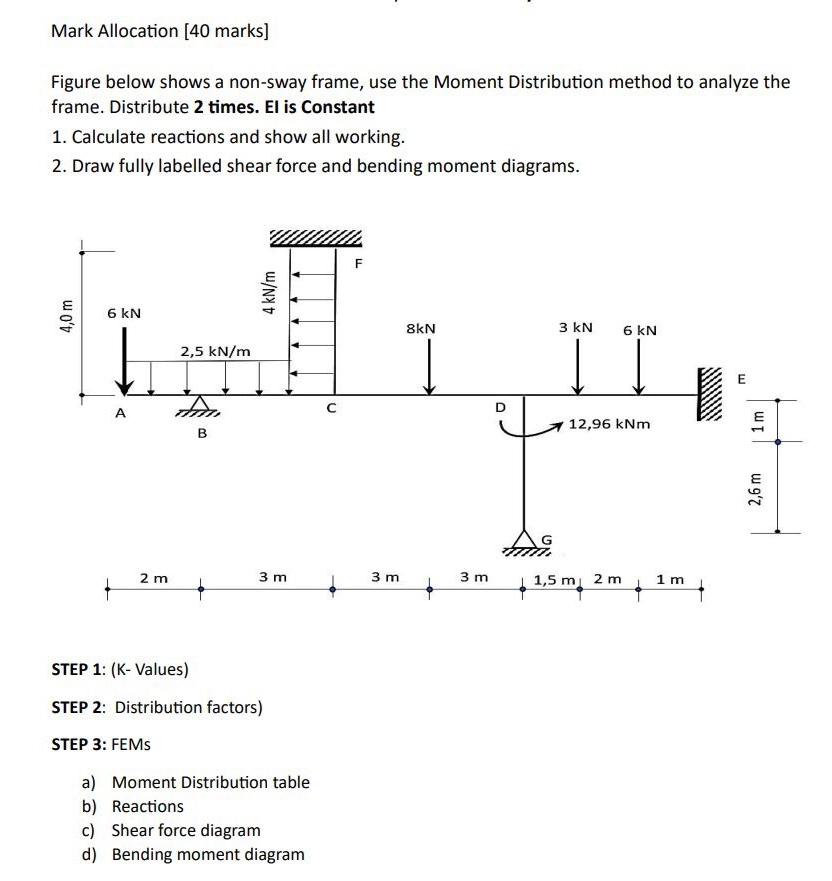

Figure below shows a non$-$sway frame, use the Moment Distribution method to analyze the frame. Distribute $2$ times. El is Constant

Calculate reactions and show all working.

Draw fully labelled shear force and bending moment diagrams.

STEP $1$: $(K-$ Values$)$

STEP $2$: Distribution factors$)$

STEP $3$: FEMs

a$)$ Moment Distribution table

b$)$ Reactions

c$)$ Shear force diagram

d$)$ Bending moment diagram$9$
