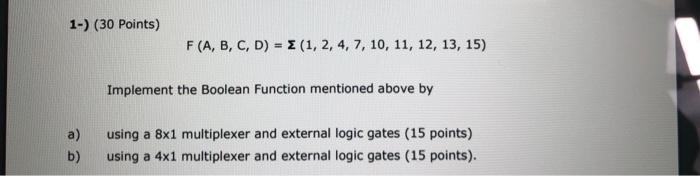

Question: 1-) (30 Points) F(A, B, C, D) = {(1, 2, 4, 7, 10, 11, 12, 13, 15) Implement the Boolean Function mentioned above by a)

1-) (30 Points) F(A, B, C, D) = {(1, 2, 4, 7, 10, 11, 12, 13, 15) Implement the Boolean Function mentioned above by a) b) using a 8x1 multiplexer and external logic gates (15 points) using a 4x1 multiplexer and external logic gates (15 points)

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
