Question: 1 4 - 6 2 . Determine the maximum height h from which 2 0 0 - k g block C can be dropped without

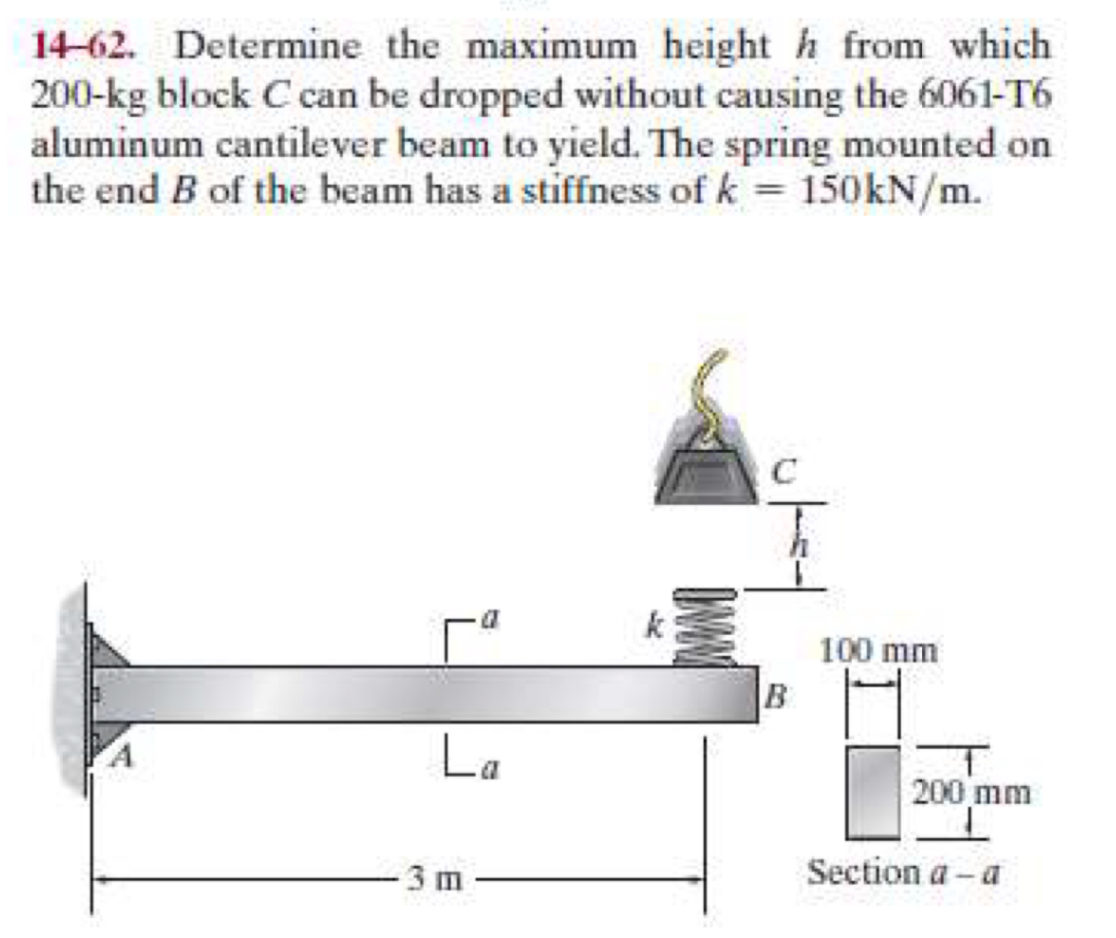

14-62. Determine the maximum height h from which 200-kg block C can be dropped without causing the 6061-T6 aluminum cantilever beam to yield. The spring mounted on the end B of the beam has a stiffness of k=150kNm.
The answer is 6.57m
1 4 - 6 2 . Determine the maximum height h from

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
