Question: Study Guide GD&T Application and Interpretation re pattern - locating TZF and the pattern - locating tolerances are shown on the illustrated part. Holes are

Study Guide GD&T Application and Interpretation

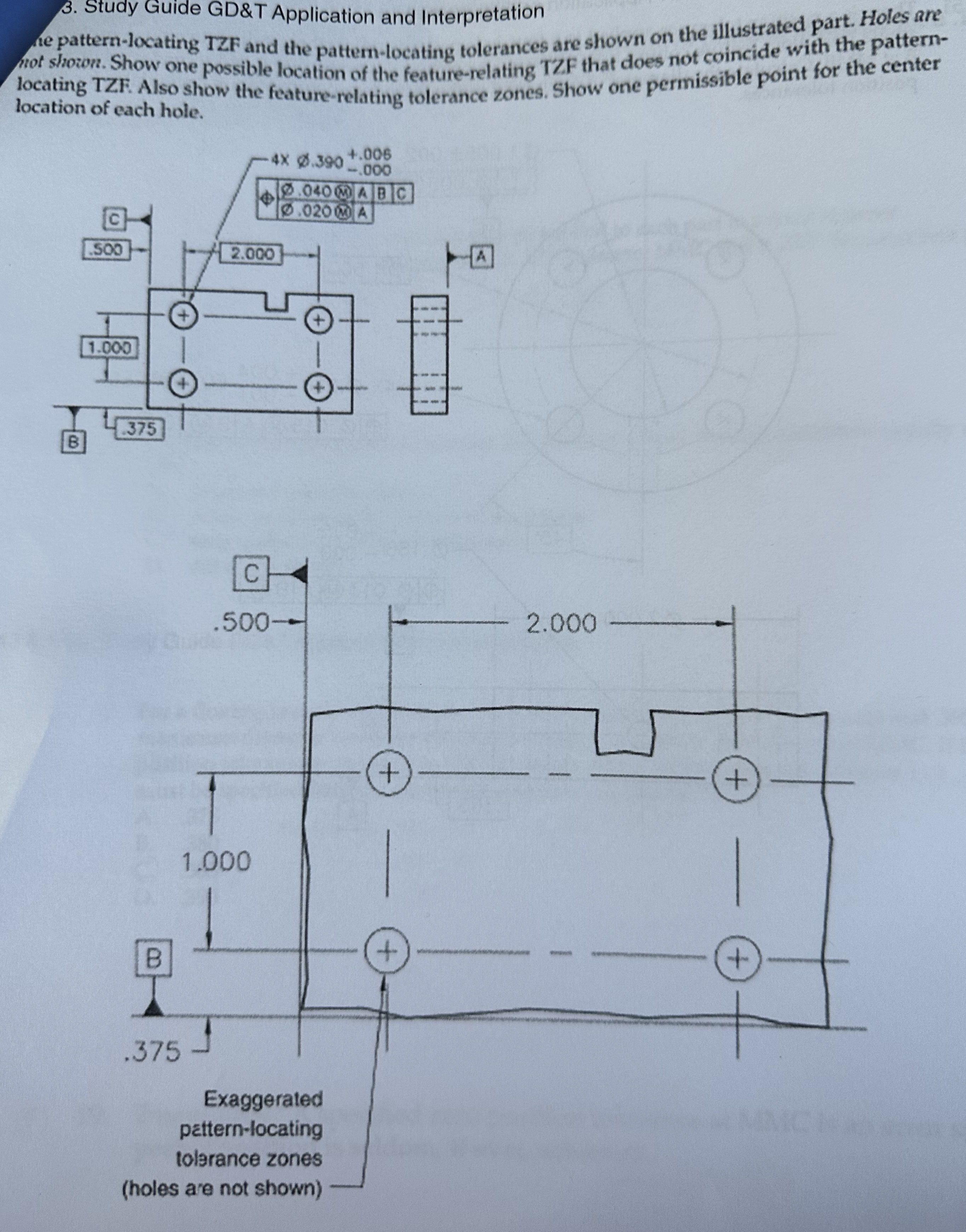

re pattern-locating TZF and the pattern-locating tolerances are shown on the illustrated part. Holes are not shozon. Show one possible location of the feature-relating TZF that does not coincide with the patternlocating TZF. Also show the feature-relating tolerance zones. Show one permissible point for the center location of each hole.
