Question: 1 4 . 6 Using the circuit in Fig. 1 4 . 1 9 ( a ) , compute the values of R and C

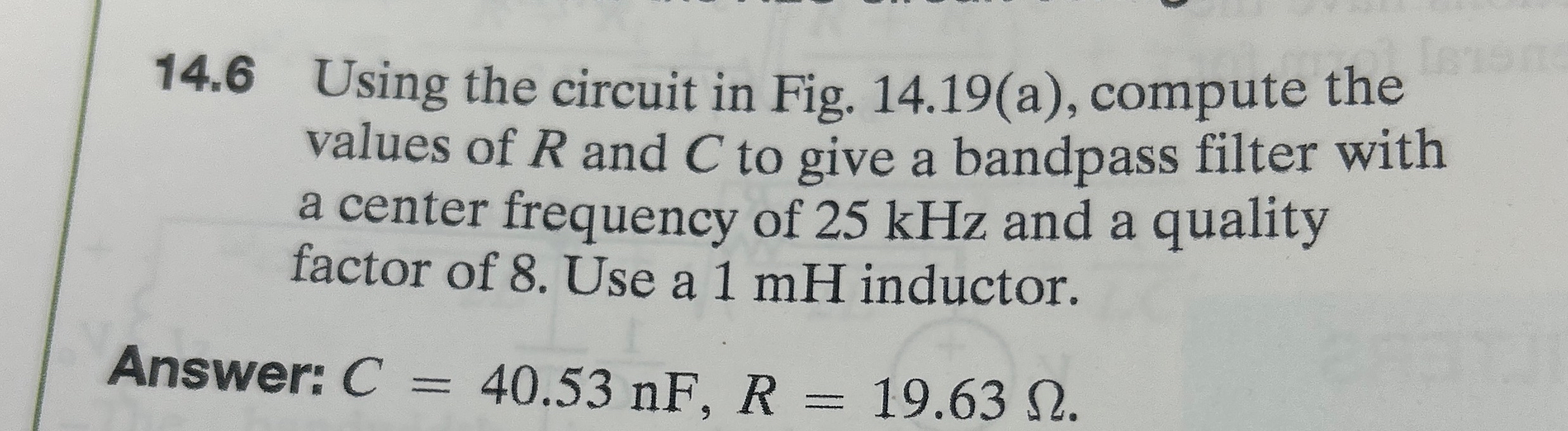

14.6 Using the circuit in Fig. 14.19(a), compute the values of R and C to give a bandpass filter with a center frequency of 25 kHz and a quality factor of 8. Use a 1 mH inductor.
Answer: C=40.53nF,R=19.63.
