Question: ( 1 5 points ) A square chip with a side length of L = 3 5 m m is insulated on one side and

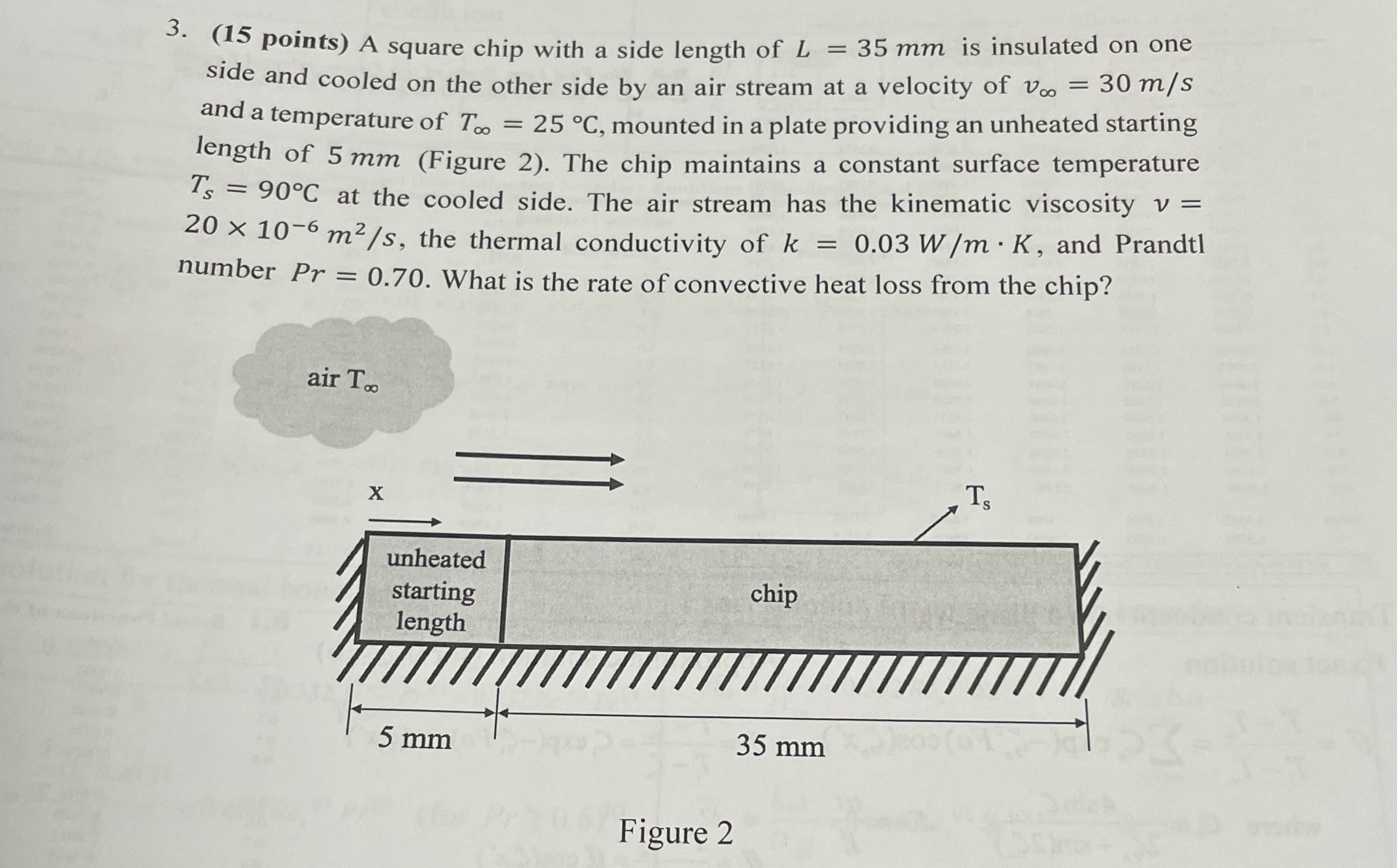

(15 points) A square chip with a side length of L=35mm is insulated on one side and cooled on the other side by an air stream at a velocity of v=30ms and a temperature of T=25C, mounted in a plate providing an unheated starting length of 5 mm (Figure 2). The chip maintains a constant surface temperature Ts=90C at the cooled side. The air stream has the kinematic viscosity v=2010-6m2s, the thermal conductivity of k=0.03Wm*K, and Prandtl number Pr=0.70. What is the rate of convective heat loss from the chip?
airT
Figure 2
( 1 5 points ) A square chip with a side length
