Question: 1) (5 points) Starting with the exponential model for the diode current i= i0(qu/' 1) iL solve for the open circuit voltage (remember the current

1) (5 points) Starting with the exponential model for the diode

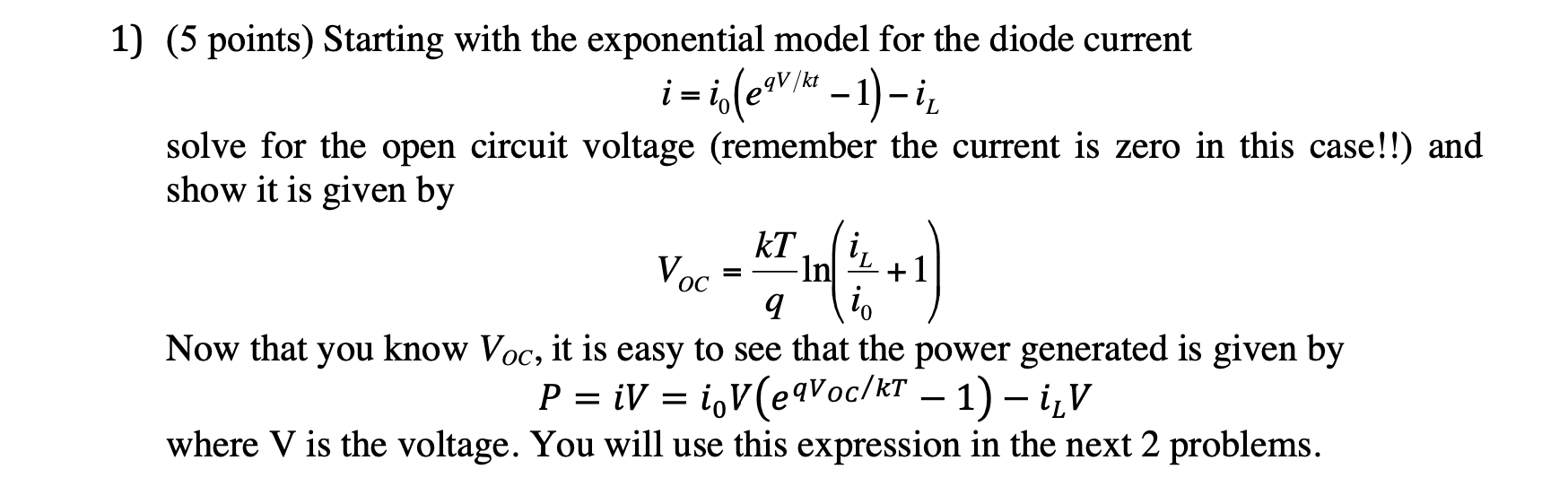

1) (5 points) Starting with the exponential model for the diode current i= i0(qu/'\" 1) iL solve for the open circuit voltage (remember the current is zero in this case!!) and show it is given by T . VOC = kln[l% +1) '1 10 Now that you know Vac, it is easy to see that the power generated is given by P = W = iOV(qu06/kT 1) iLV where V is the voltage. You will use this expression in the next 2 problems

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
