Question: ( 1 5 points ) The square - threaded bolt and nut shown below hold together two plates. The mean radius of the thread is

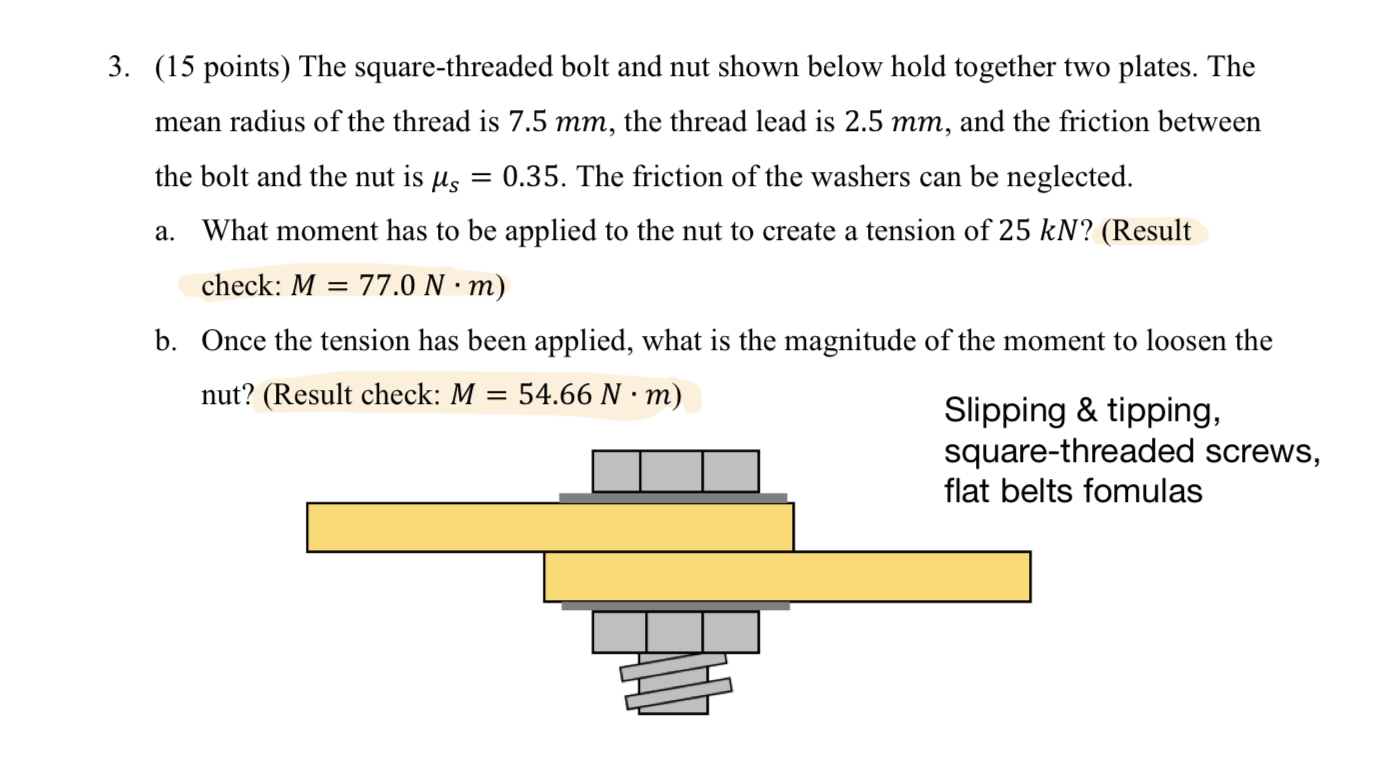

(15 points) The square-threaded bolt and nut shown below hold together two plates. The mean radius of the thread is 7.5 mm , the thread lead is 2.5 mm , and the friction between the bolt and the nut is s=0.35. The friction of the washers can be neglected.
a. What moment has to be applied to the nut to create a tension of 25kN?(Result check: M=77.0N*m)
b. Once the tension has been applied, what is the magnitude of the moment to loosen the hreaded screws, fomulas
( 1 5 points ) The square - threaded bolt and nut
