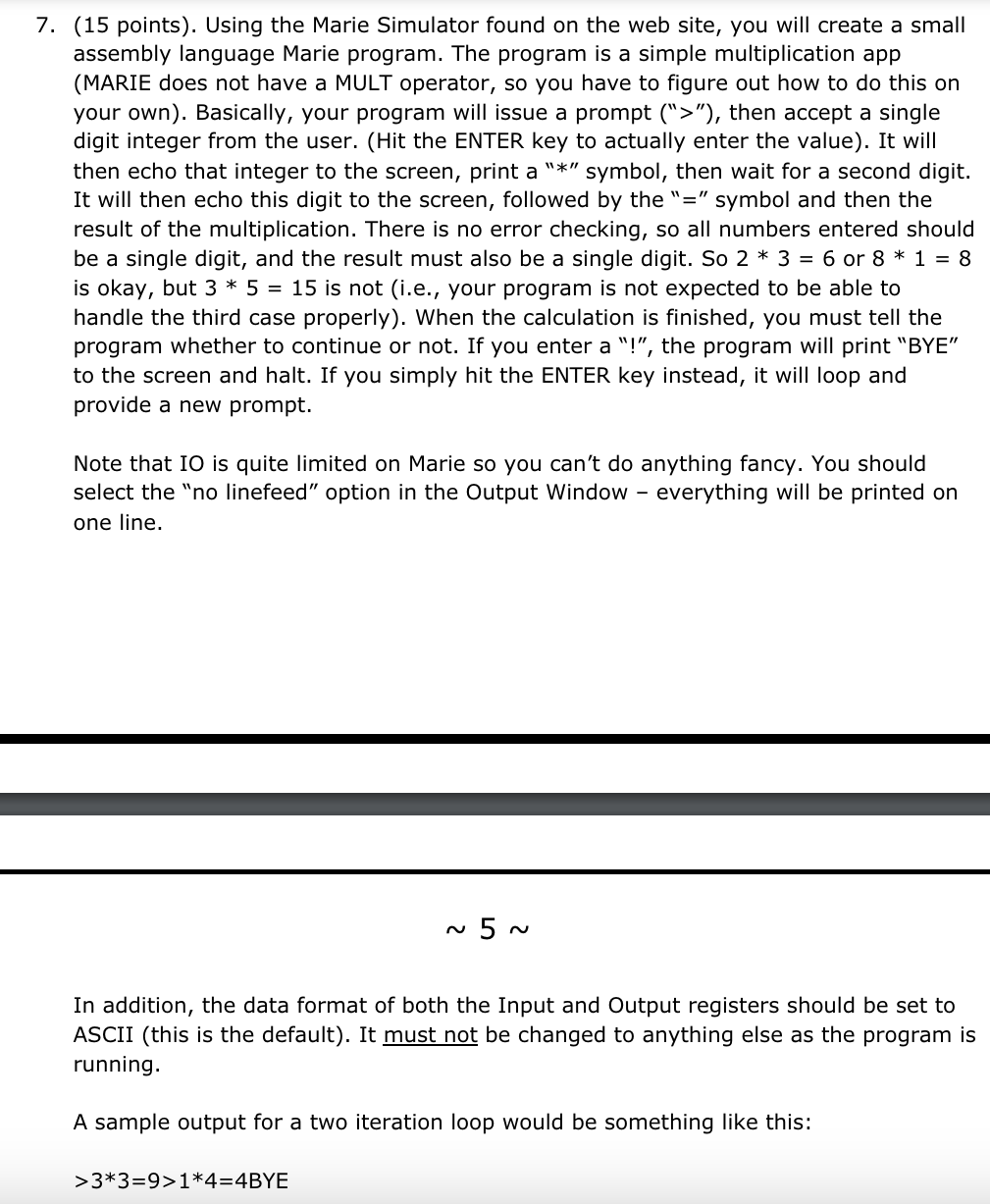

$(15$ points$).$ Using the Marie Simulator found on the web site, you will create a small

assembly language Marie program. The program is a simple multiplication app

$($MARIE does not have a MULT operator, so you have to figure out how to do this on

your own$).$ Basically, your program will issue a prompt $(">"),$ then accept a single

digit integer from the user. $($Hit the ENTER key to actually enter the value$).$ It will

then echo that integer to the screen, print a $"*"$ symbol, then wait for a second digit.

It will then echo this digit to the screen, followed by the $"="$ symbol and then the

result of the multiplication. There is no error checking, so all numbers entered should

be a single digit, and the result must also be a single digit. So $2**3=6$ or $8**1=8$

is okay, but $3**5=15$ is not $($i$.$e$.,$ your program is not expected to be able to

handle the third case properly$).$ When the calculation is finished, you must tell the

program whether to continue or not. If you enter a $"!",$ the program will print "BYE"

to the screen and halt. If you simply hit the ENTER key instead, it will loop and

provide a new prompt.

Note that IO is quite limited on Marie so you can't do anything fancy. You should

select the $"$no linefeed" option in the Output Window $-$ everything will be printed on

one line.

In addition, the data format of both the Input and Output registers should be set to

ASCII $($this is the default$).$ It must not be changed to anything else as the program is

running.

A sample output for a two iteration loop would be something like this:

$>3**3=9>1**4=4$BYE
