Question: 1 6 - 1 1 . Determine the structure stiffness matrix K , for each member of the frame. Take E = 2 9 (

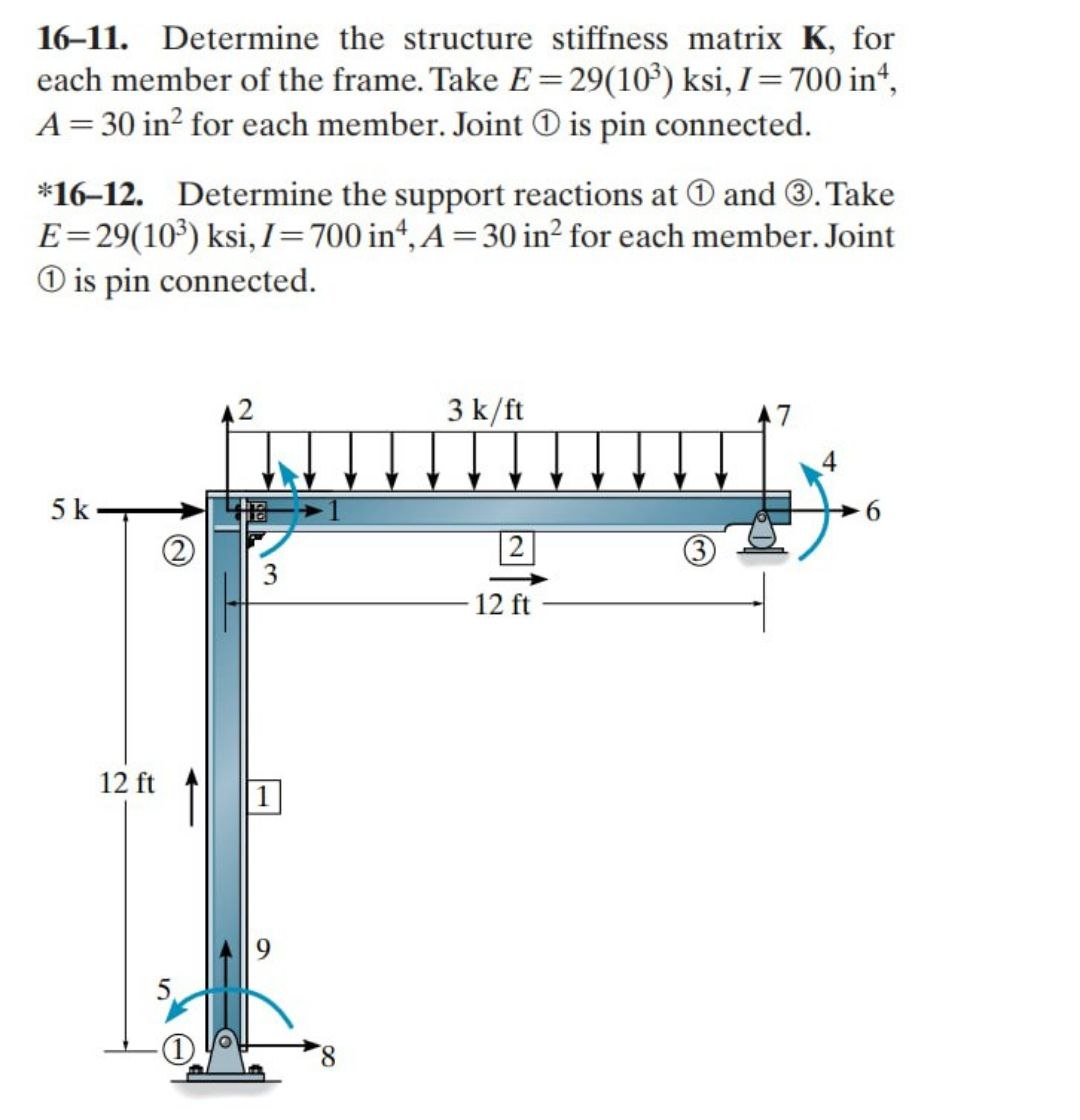

16-11. Determine the structure stiffness matrix K, for
each member of the frame. Take E=29(103)ksi,I=700in4,
A=30in2 for each member. Joint (1) is pin connected.
*16-12. Determine the support reactions at (1) and (3). Take
E=29(103)ksi,I=700in4,A=30in2 for each member. Joint
(1) is pin connected.
1 6 - 1 1 . Determine the structure stiffness

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
