Question: 1 6 - 1 3 3 . Rod A B rotates counterclockwise with a constant angular velocity = 3 r a d s . Determine

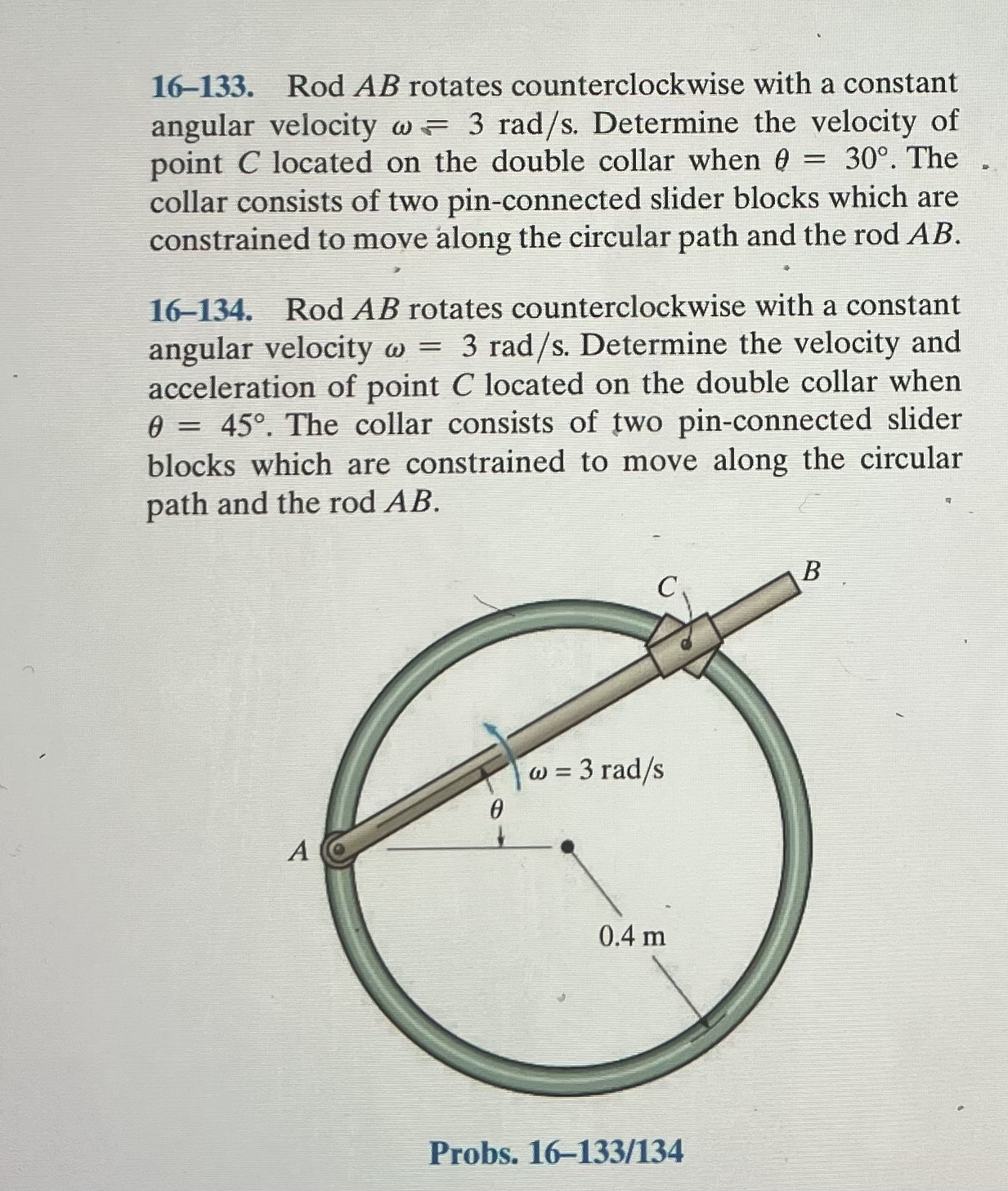

16-133. Rod AB rotates counterclockwise with a constant angular velocity =3rads. Determine the velocity of point C located on the double collar when =30. The collar consists of two pin-connected slider blocks which are constrained to move along the circular path and the rodAB.
16-134. Rod AB rotates counterclockwise with a constant angular velocity =3rads. Determine the velocity and acceleration of point C located on the double collar when =45. The collar consists of two pin-connected slider blocks which are constrained to move along the circular path and the rodAB.
Probs. 16-133/134
1 6 - 1 3 3 . Rod A B rotates counterclockwise

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
