Rod $AB$ rotates counterclockwise with a constant angular velocity $=2ra\frac{d}{s}.$ The collar consists of two pin$-$connected slider blocks which are constrained to move along the circular path and the rod $AB.$ Suppose that $r=0\mathrm{.}6m.($Figure $1)$

Determine the magnitude of velocity of point $C$ located on the double collar when $=30.$

Express your answer to three significant figures and include the appropriate units.

View Available Hint$($s$)$

$$

Previous Answers

Incorrect; Try Again; $8$ attempts remaining

Part B

Determine the direction of velocity of point $C$ located on the double collar measured counterclockwise from the positive $x$ axis when $=30.$ Express your answer in degrees to three significant figures.

View Available Hint$($s$)$

$$

${}^{\text{'}}=$

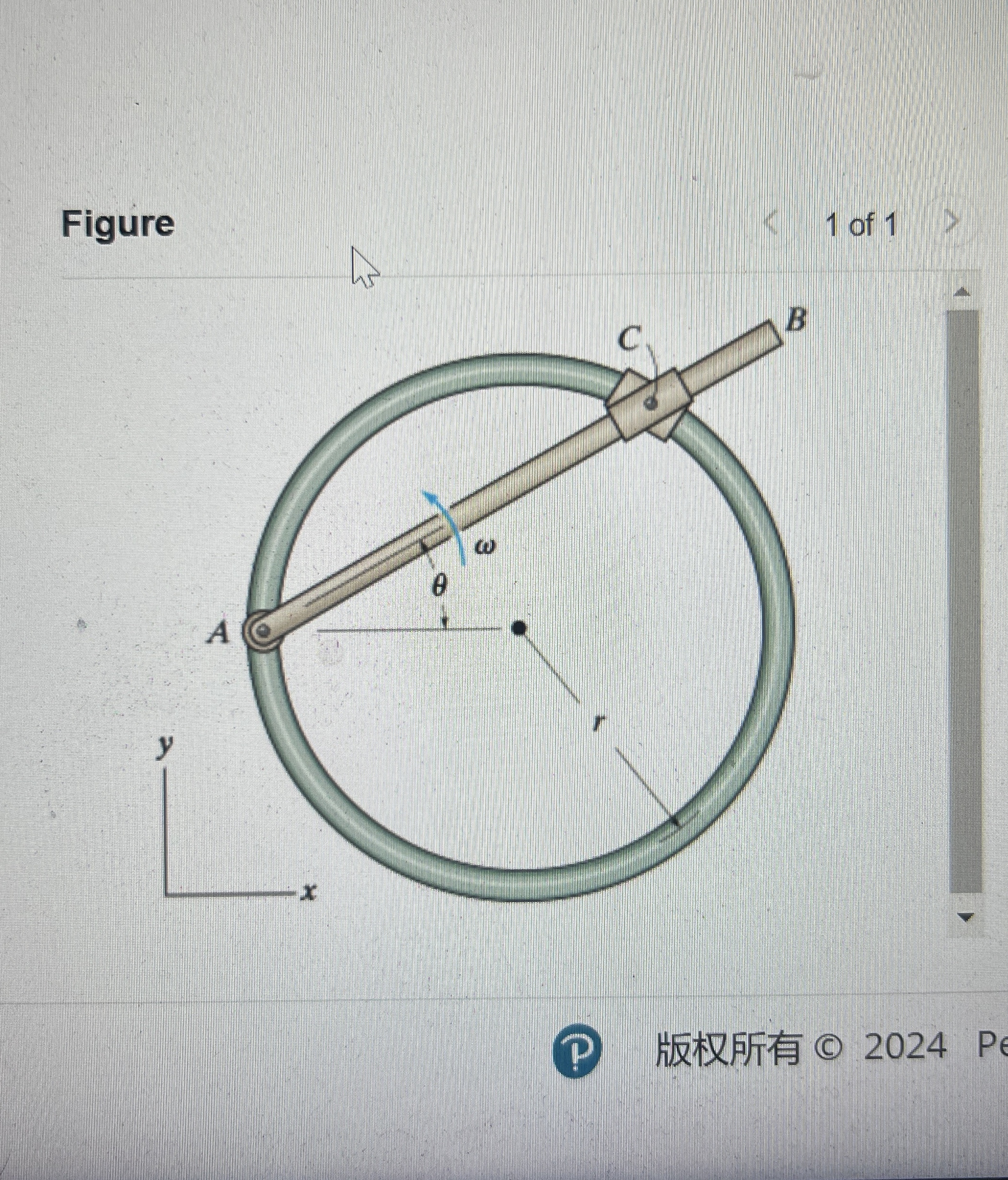

Figure
