Question: * 1 6 - 1 3 6 . Rod A B rotates counterclockwise with a constant angular velocity = 3 r a d s .

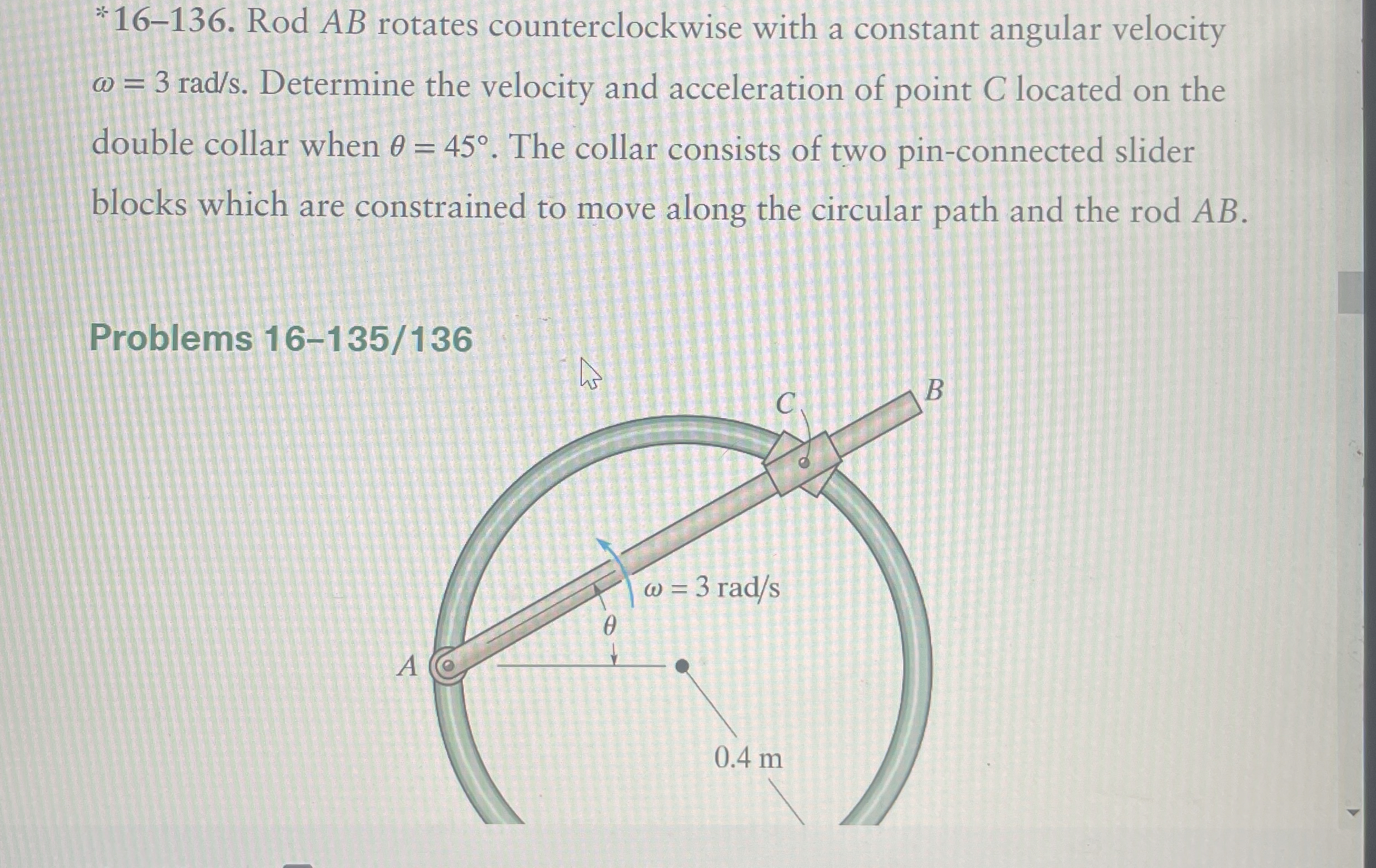

*16-136. Rod AB rotates counterclockwise with a constant angular velocity =3rads. Determine the velocity and acceleration of point C located on the double collar when =45. The collar consists of two pin-connected slider blocks which are constrained to move along the circular path and the rodAB.
Problems 16-135/136
* 1 6 - 1 3 6 . Rod A B rotates counterclockwise

Step by Step Solution

There are 3 Steps involved in it
