Excersice LUKISAN ISOMETRIC

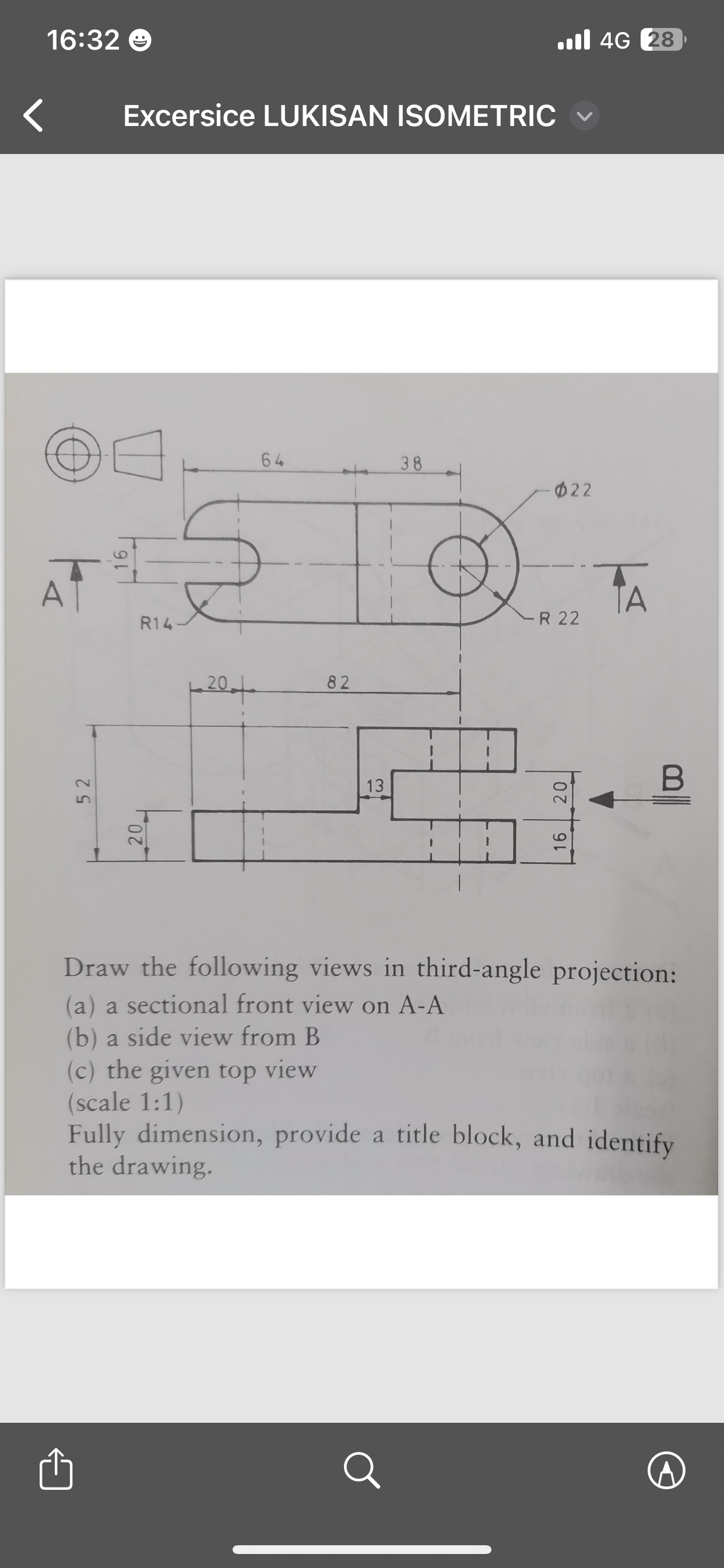

Draw the following views in third$-$angle projection:

$($a$)$ a sectional front view on A$-$A

$($b$)$ a side view from B

$($c$)$ the given top view

$($scale $1$:$1)$

Fully dimension, provide a title block, and identify the drawing.
