Question: 1 6 - 3 . The 2 - m long slender rod shown in the figure below is rotating about point O at the instant

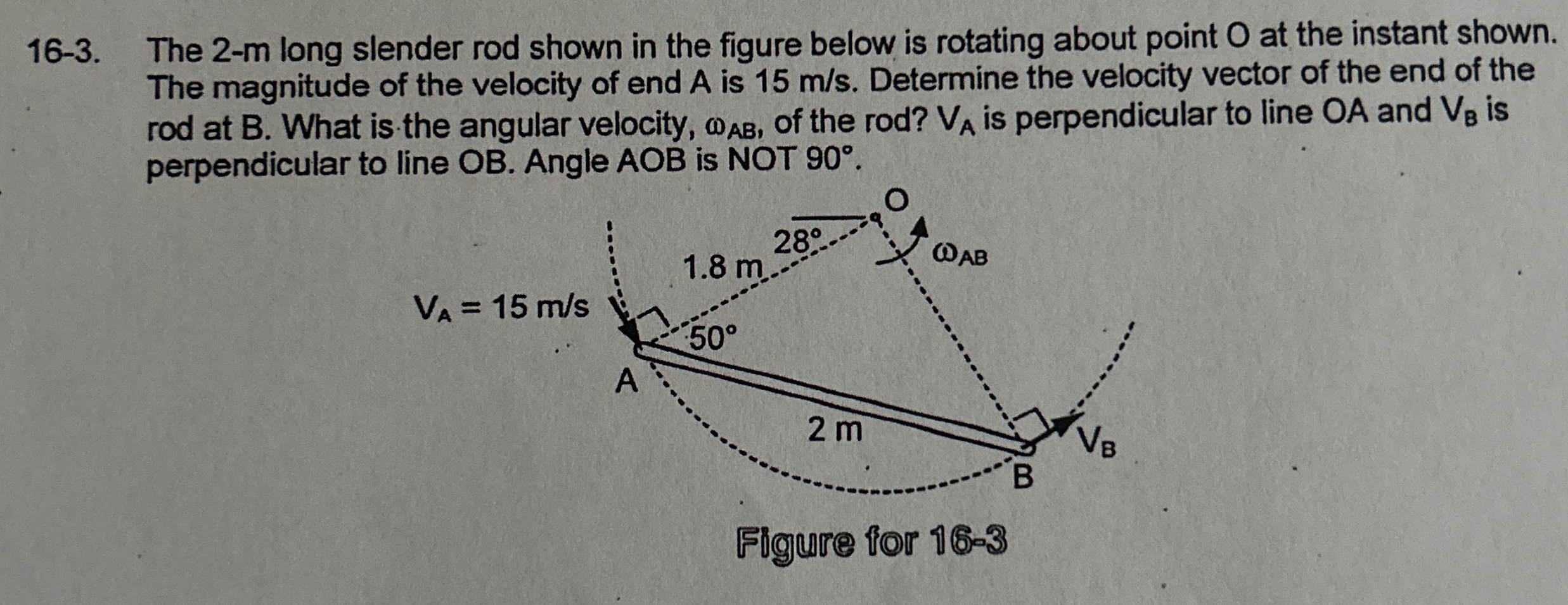

16-3. The 2-m long slender rod shown in the figure below is rotating about point O at the instant shown.
The magnitude of the velocity of end A is 15ms. Determine the velocity vector of the end of the
rod at B. What is the angular velocity, AB, of the rod? VA is perpendicular to line OA and VB is
perpendicular to line OB. Angle AOB is NOT 90.
Figure for 16-3
1 6 - 3 . The 2 - m long slender rod shown in the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!
