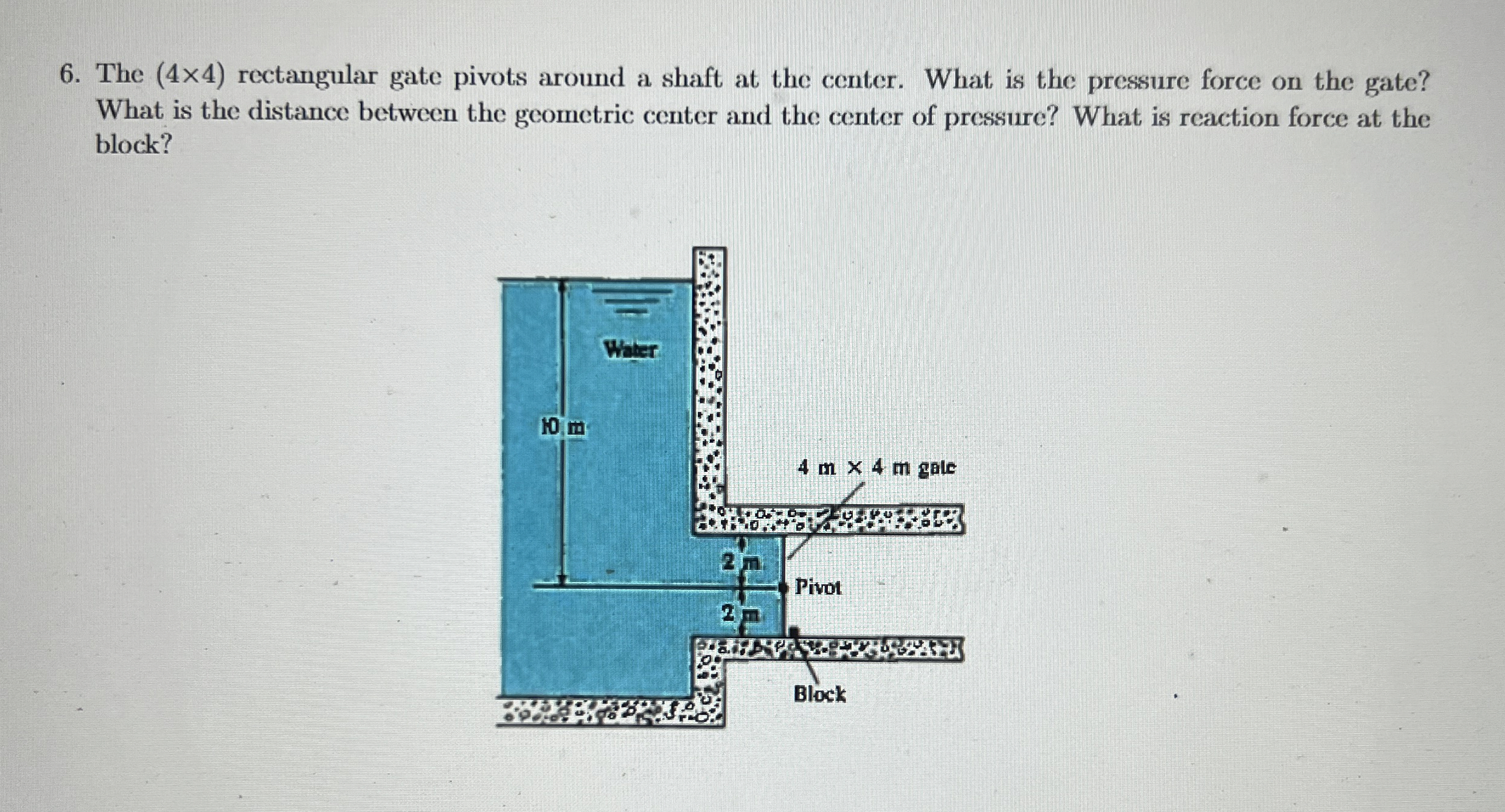

Question: The ( 4 4 ) rectangular gate pivots around a shaft at the center. What is the pressure force on the gate? What is the

The (44) rectangular gate pivots around a shaft at the center. What is the pressure force on the gate?
What is the distance between the geometric center and the center of pressure? What is reaction force at the
block?
The ( 4 4 ) rectangular gate pivots around a

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
