Question: 1 6 - 6 9 . The clockwise angular velocity of the link A B is 2 r a d s . Determine the angular

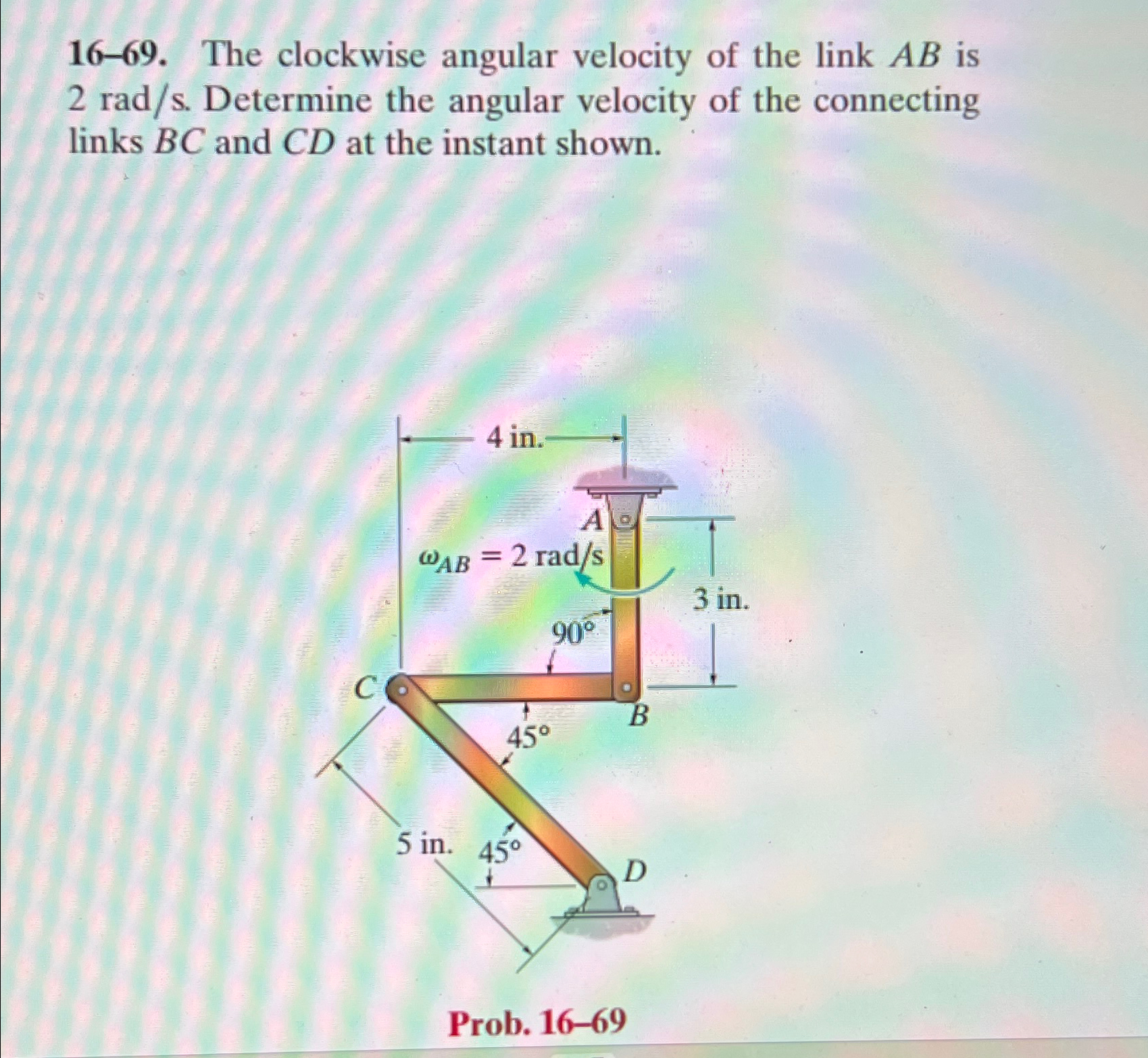

16-69. The clockwise angular velocity of the link AB is 2rads. Determine the angular velocity of the connecting links BC and CD at the instant shown.
Prob. 16-69
1 6 - 6 9 . The clockwise angular velocity of the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
