Question: 1 6 - 5 8 . When the slider block C is in the position shown, the link A B has a clockwise angular velocity

16-58. When the slider block C is in the position shown, the link AB has a clockwise angular velocity of 2rads. Determine the velocity of block C at this instant.
Prob. 16-58

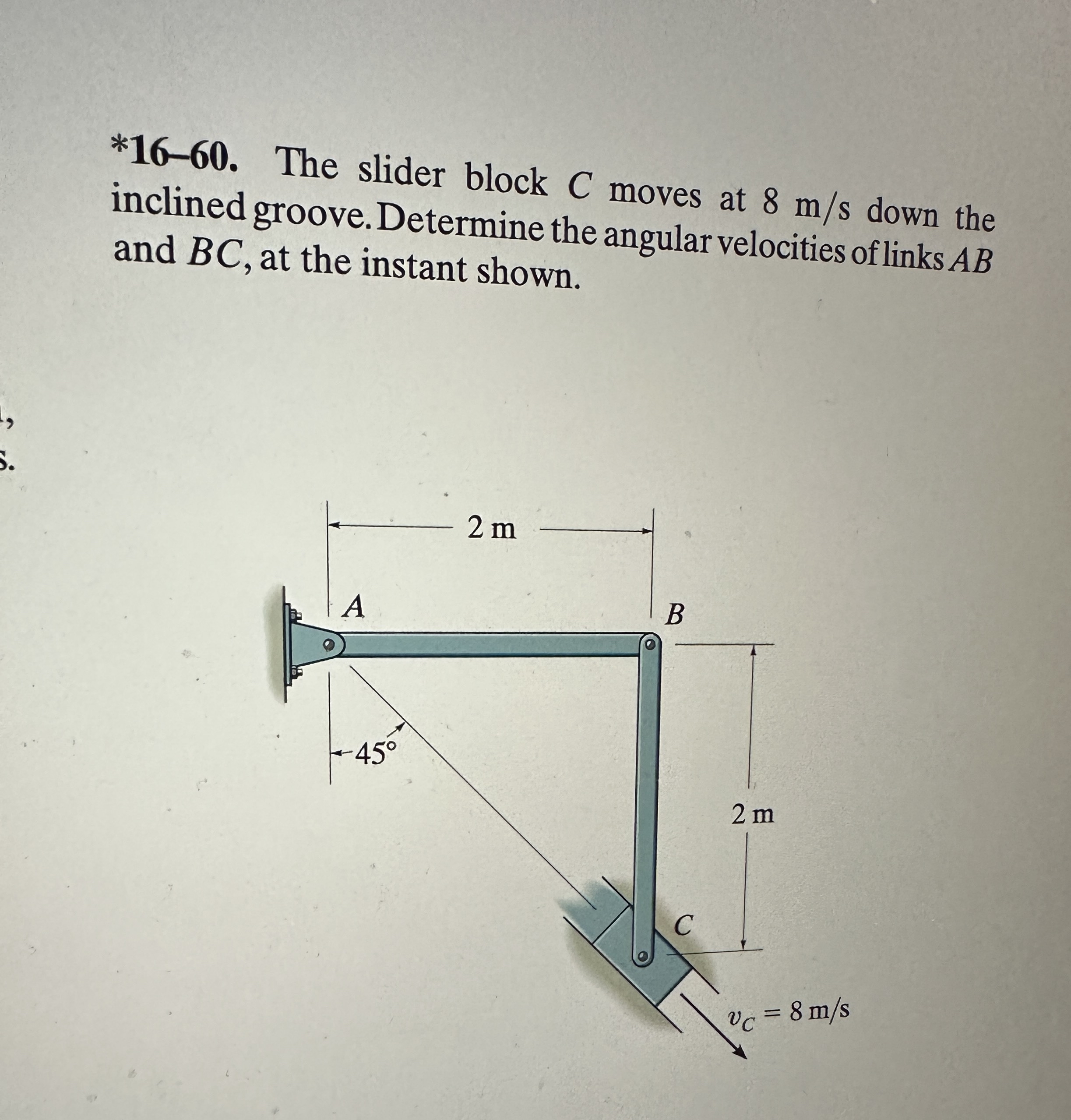

*16-60. The slider block C moves at 8ms down the inclined groove. Determine the angular velocities of links AB and BC, at the instant shown.
*16-60. The slider block C moves at 8ms down the inclined groove. Determine the angular velocities of links AB and BC, at the instant shown.
1 6 - 5 8 . When the slider block C is in the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

1 6 - 1 1 7 . The hydraulic cylinder D extends with a velocity of v B = 4 f t s and an acceleration of a B = 1 . 5 f t s 2 . Determine the acceleration of C at the instant shown. Probs. 1 6 - 1 1 6 /...

Q:

When the slider block C is in the position shown in ( Figure 1 ) , the link AB has a clockwise angular velocity of 1 rad / s . determine the magnitude of the velocity of block c at this instant

Q:

When the slider block C is in the position shown, the link AB has a clockwise angular velocity of 2 rad/s. Determine the velocity of block C at this instant. 15 in. A 45 B WAB = 2 rad/s 45 15 in. C
