Question: 1 6 . 7 Compute the horizontal and vertical forces exerted on the vane shown in Fig. 1 6 . 1 4 due to a

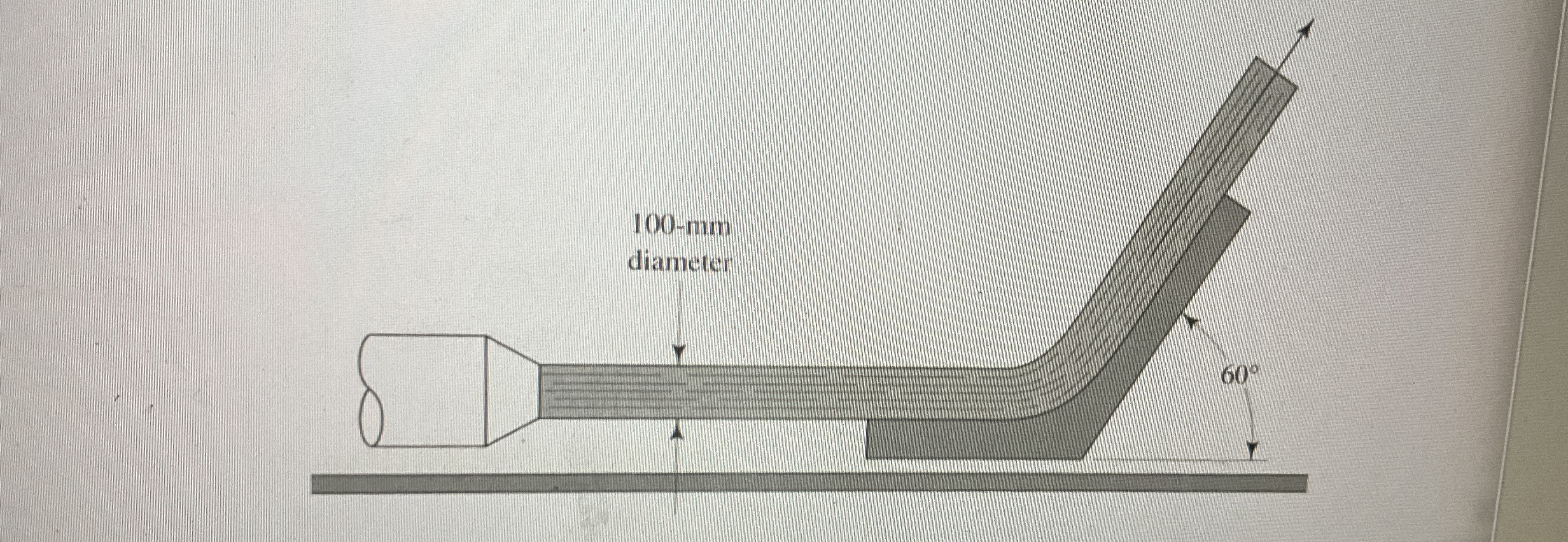

16.7 Compute the horizontal and vertical forces exerted on the vane shown in Fig. 16.14 due to a flow of water at 50^C. The velocity is constant at 15 mis. /r/n FIGURE 16.14 Problem 16.7.
1 6 . 7 Compute the horizontal and vertical

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

1 6 . 7 Compute the horizontal and vertical forces exerted on the vane shown in Fig. P 1 6 . 7 due to a flow of water at 5 0 C . The velocity is constant at 1 5 m s . Figure P 1 6 . 7 Vane for...
