Question: 1 6 A rectangular cantilever beam is bent into an L - shape as shown here. A force P = 1 0 k acts on

16

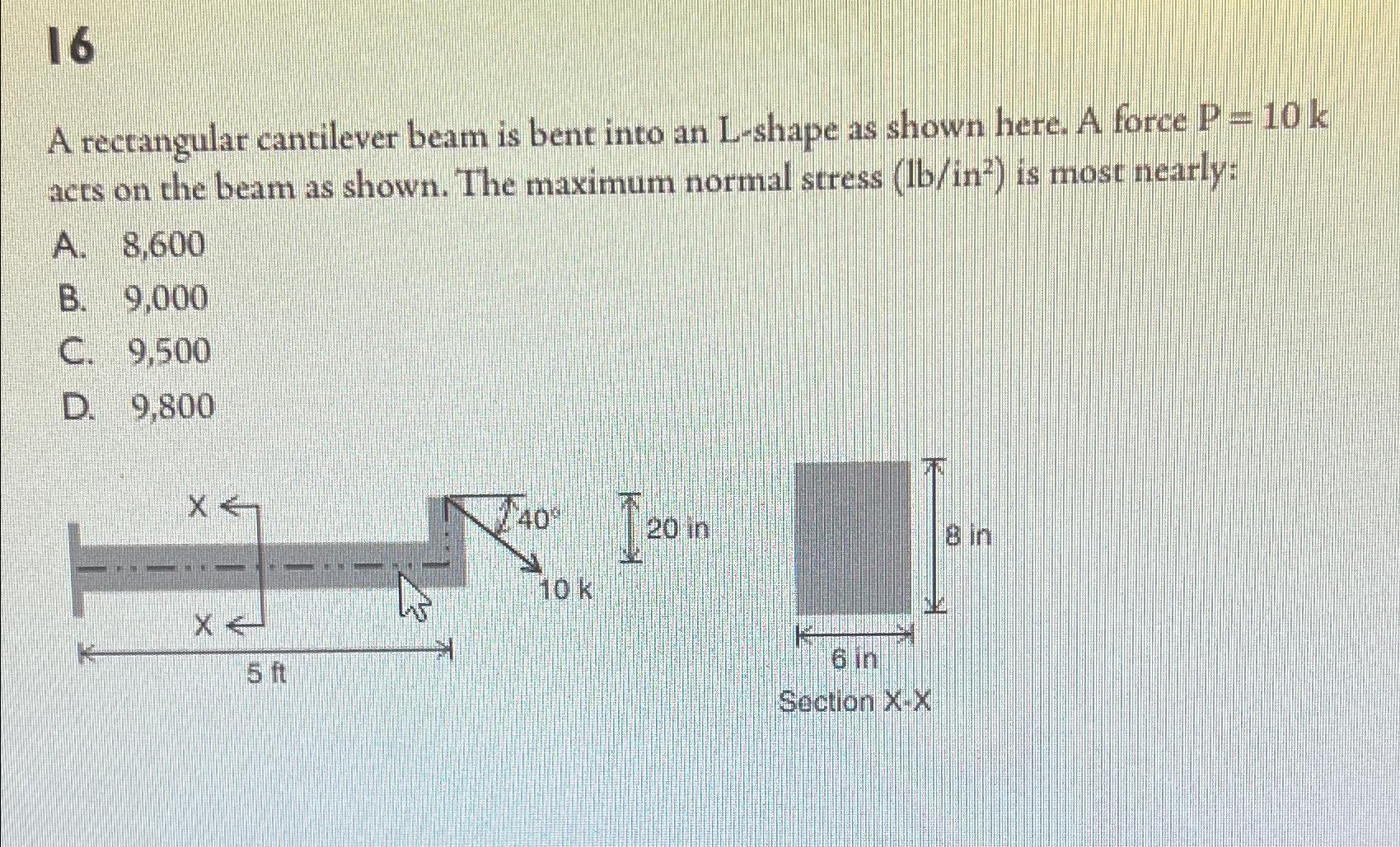

A rectangular cantilever beam is bent into an L-shape as shown here. A force P=10k acts on the beam as shown. The maximum normal stress (lbin2) is most nearly:
A.8,600
B.9,000
C.9,500
D.9,800
1 6 A rectangular cantilever beam is bent into an

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
