Question: 1 7 . 2 1 A short compression member is subjected to two compressive loads, as shown. The member is 6 in . by 1

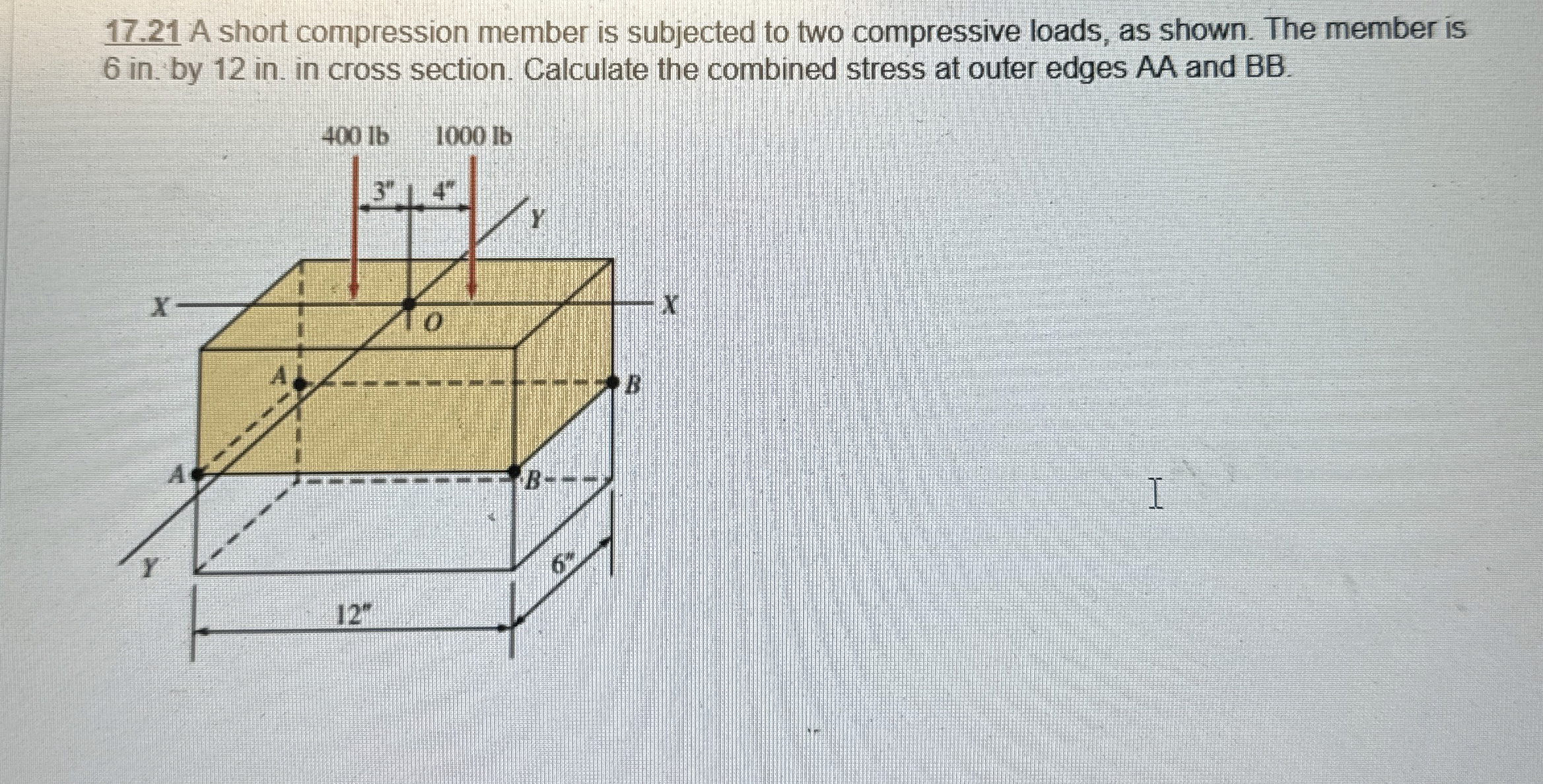

17.21 A short compression member is subjected to two compressive loads, as shown. The member is 6 in. by 12 in. in cross section. Calculate the combined stress at outer edges AA and BB.
1 7 . 2 1 A short compression member is subjected
