Question: 1 7 - 3 3 . The uniform girder A B has a mass of 8 Mg . Determine the internal axial, shear, and bending

17-33. The uniform girder AB has a mass of 8 Mg . Determine the internal axial, shear, and bending-moment loadings at the center of the girder if a crane gives it an upward acceleration of 3ms2.

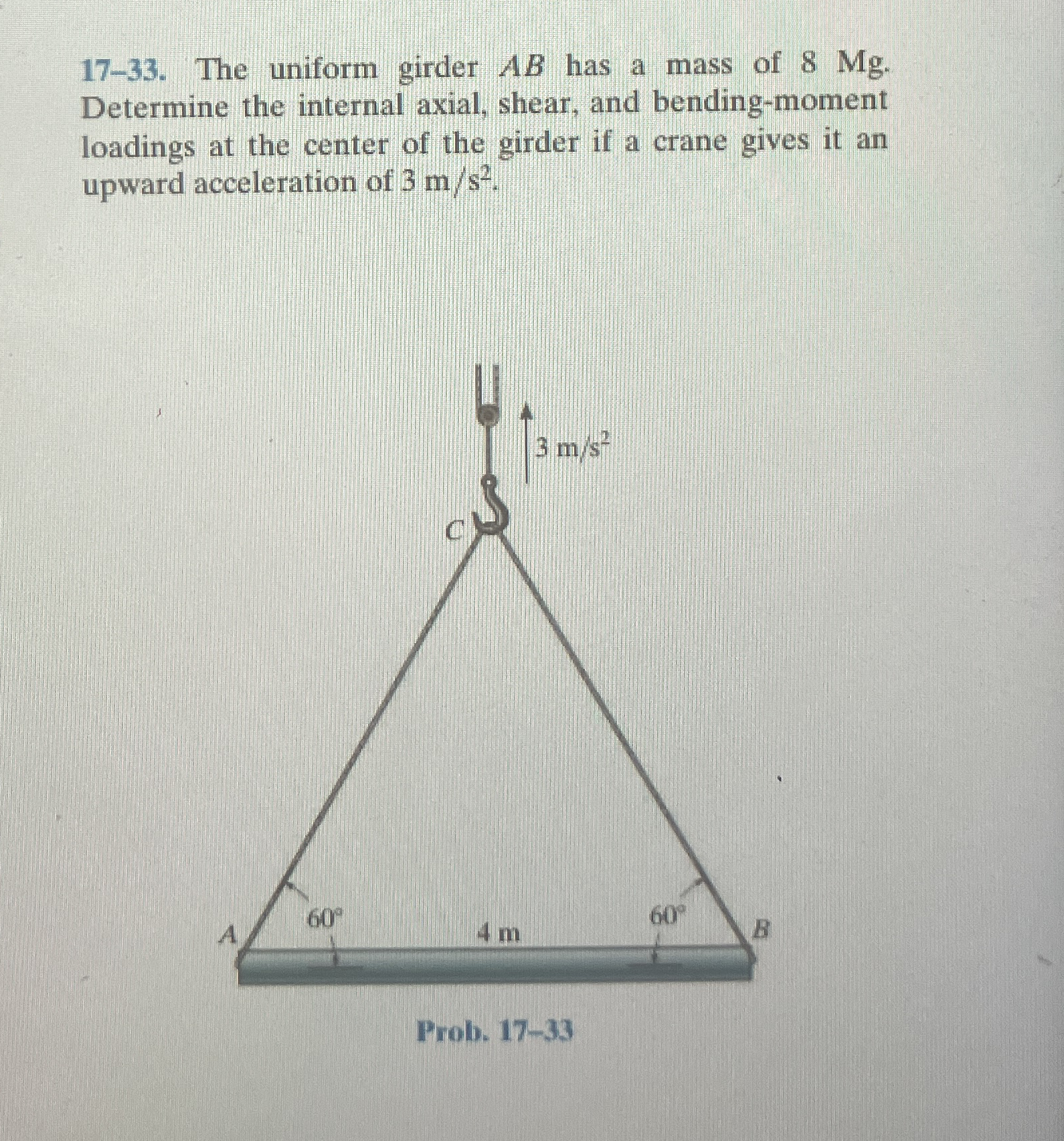

Prob. 17-33
1 7 - 3 3 . The uniform girder A B has a mass of

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
