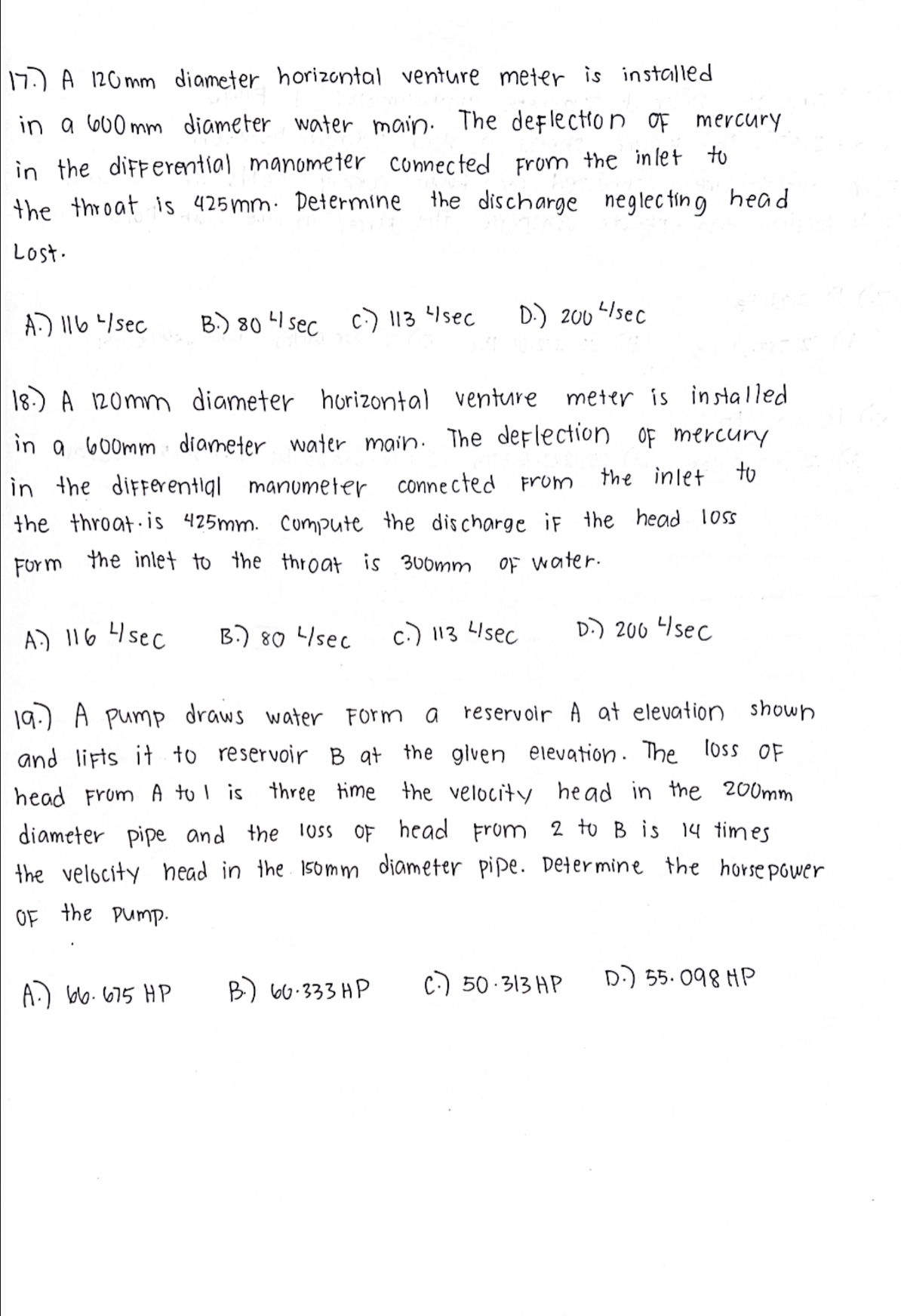

$17.)$ A $120mm$ diameter horizontal venture meter is installed in a $600mm$ diameter water main. The deflection of mercury in the differential manometer connected from the inlet to the throat is $425mm.$ Determine the discharge neglecting head Lost.

A$.)\frac{1164}{sec}$

B$.){80}^{4}sec$

c$.)\frac{{113}^4}{sec}$

D$.){200}^{\frac{L}{sec}}$

$18.)$ A $120mm$ diameter horizontal venture meter is installed in a $600mm$ diameter water main. The deflection of mercury in the differential manumeter connected from the inlet to the

throat.is $425mm.$ Compute the discharge if the head loss Form the inlet to the throat is $300mm$ of water.

A$.)116\frac{L}{sec}$

B$.)80\frac{L}{sec}$

c$.)1134sec$

D$.)200\frac{L}{sec}$

$19.)$ A pump draws water form a reservoir $A$ at elevation shown and lifts it to reservoir $B$ at the glven elevation. The loss of head from $A$ to $1$ is three time the velocity head in the $200mm$ diameter pipe and the loss of head from $2$ to $B$ is $14$ times the velocity head in the $150mm$ diameter pipe. Determine the horsepower of the pump.

A$.)66\mathrm{.}675HP$

B$.)60\mathrm{.}333HP$

C$.)50\mathrm{.}313HP$

D$.)55\mathrm{.}098HP$
