Question: ( 1 9 ) A 8 0 , 0 0 0 N load is applied in the longitudinal direction to a continuous fiber reinforced composite

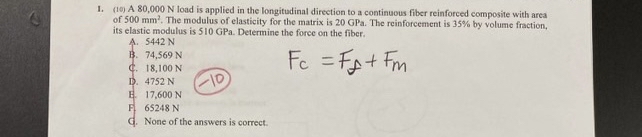

(19)A80,000N load is applied in the longitudinal direction to a continuous fiber reinforced composite with area of 500mm2. The modulus of elasticity for the matrix is 20 GPa . The reinforcement is 35% by volume fraction, its elastic modulus is 510 GPa . Determine the force on the fiber.
A.5442 N
B.74,569N
c.18,100N
D.4752 N
E.17,600N
F.65248 N
G. None of the answers is correct.
( 1 9 ) A 8 0 , 0 0 0 N load is applied in the
