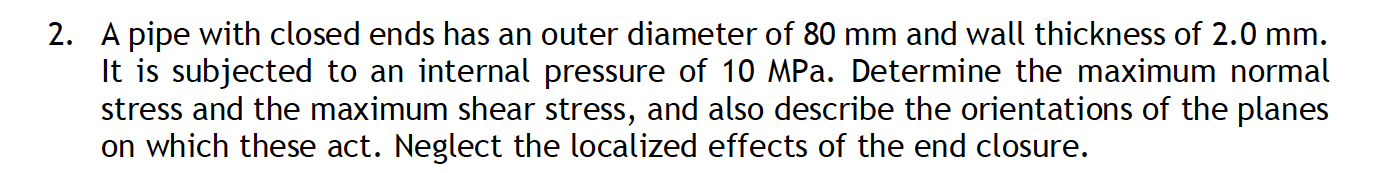

Question: 2 . A pipe with closed ends has an outer diameter of 8 0 mm and wall thickness of 2 . 0 mm . It

2 .

A pipe with closed ends has an outer diameter of

80

mm and wall thickness of

2.0

.

It is subjected to an internal pressure of

10

MPa

.

Determine the maximum normal stress and the maximum shear stress, and also describe the orientations of the planes on which these act. Neglect the localized effects of the end closure.

2 . A pipe with closed ends has an outer diameter

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
