Question: 1 . a ) Apply maximum power transfer theorem to calculate maximum power transferred through the load ( ( R Omega )

1. a) Apply maximum power transfer theorem to calculate maximum power

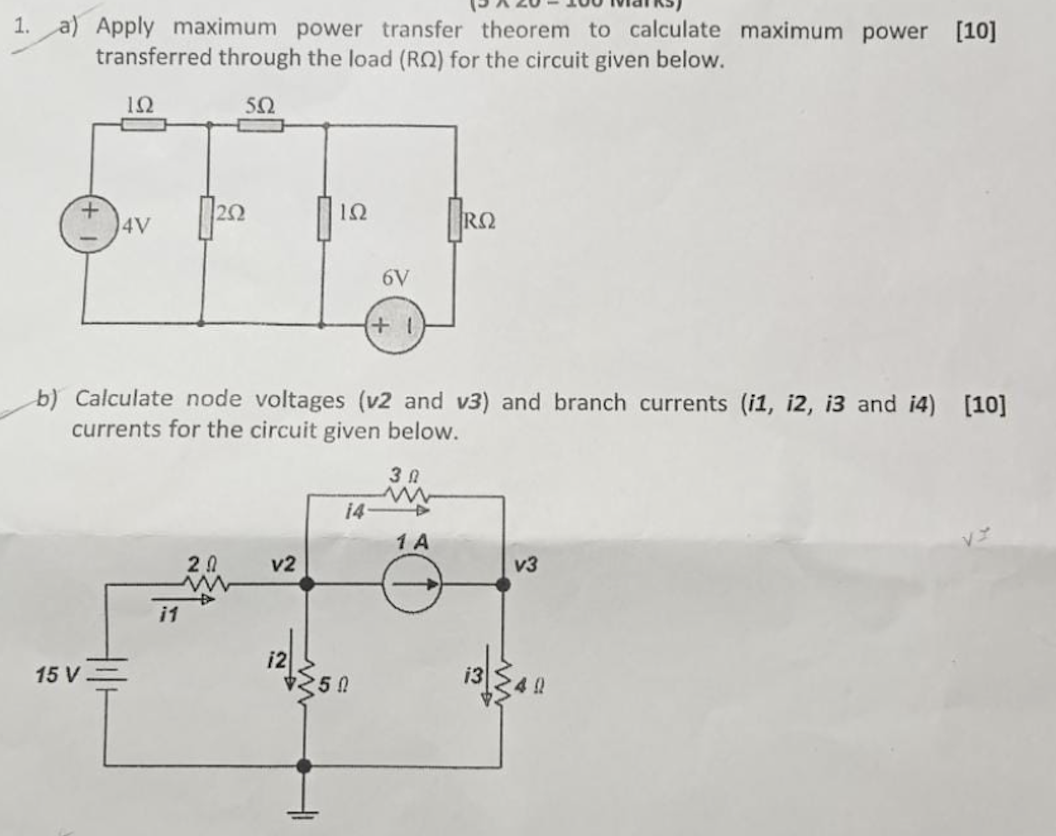

transferred through the load \((R \Omega)\) for the circuit given below.
b) Calculate node voltages (v2 and v3) and branch currents (i1, i2, i3 and i4)
currents for the circuit given below.
