Question: 1) A BOMtable is given below for an air purifier, your task is to create your own production route sheet and draw a precedence diagram.

1) A BOMtable is given below for an air purifier, your task is to create your own production route sheet and draw a

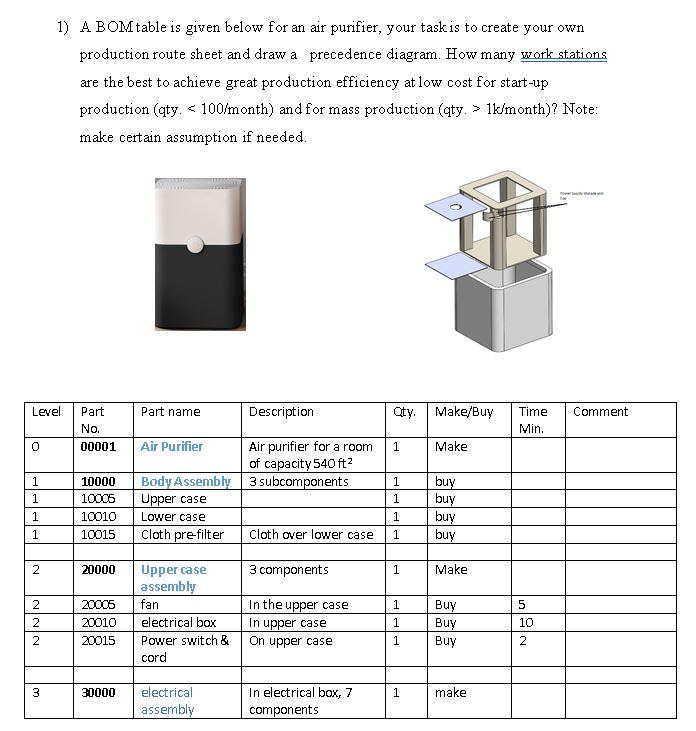

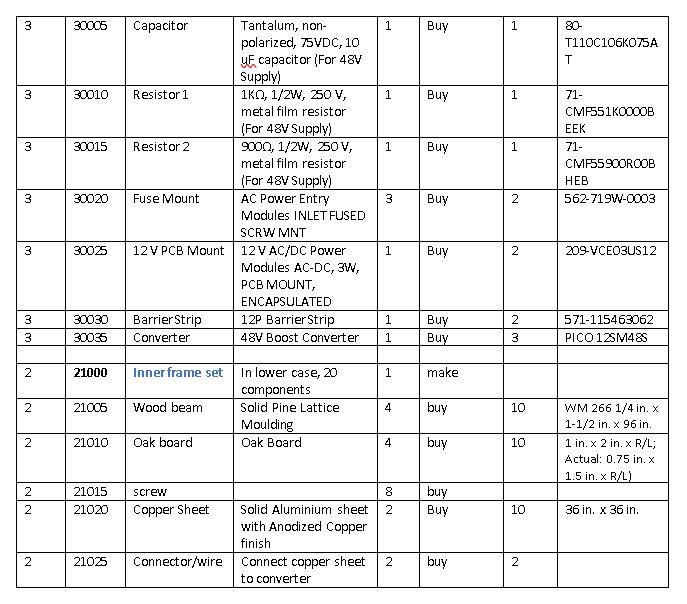

1) A BOMtable is given below for an air purifier, your task is to create your own production route sheet and draw a precedence diagram. How many work stations are the best to achieve great production efficiency at low cost for start-up production (aty. 1k/month)? Note: make certain assumption if needed. Level Part name Part No. Description Qty. Make/Buy Comment Time Min. 0 00001 1 Make 1 1 1 1 1 1 Air Purifier Air purifier for a room of capacity 540 ft2 Body Assembly 3 subcomponents Upper case Lower case Cloth pre filter Cloth over lower case 10000 10005 10010 10015 buy buy buy buy 1 1 2 20000 3 components 1 Make NNN 20005 20010 20015 Upper case assembly fan electrical box Power switch & cord In the upper case In upper case On upper case 1 1 1 Buy Buy Buy 5 10 2 3 30000 1 make electrical assembly In electrical box, 7 components 3 30006 1 Buy 1 80- T110C106K075A T 3 30010 1 Buy 1 3 30015 1 Buy 1 Capacitor Tantalum, non- polarized, 75VDC, 10 uF capacitor (For 48V Supply) Resistor 1 1KO, 1/2W, 230 V, metal film resistor (For 48V Supply) Resistor 2 9000, 1/2W, ZOV, met al film resistor (For 48V Supply) Fuse Mount AC Power Entry Modules INLET FUSED SCRW MNT 12V PCB Mount 12V AC/DC Power Modules AC-DC, 3W, PCB MOUNT, ENCAPSULATED Barrier Strip 12P Barrier Strip Converter 48V Boost Converter 71- CMF551K0000B EEK 71- CMF55900ROOB HEB 562-719W-0003 3 30020 3 Buy 2 3 30025 1 Buy 2 209-VCEOUS12 30030 3 3 1 1 Buy Buy 2 3 571-115463062 PICO 128M48S 30036 N 21000 Inner frame set 1 make 2 21006 Wood beam In lower case, 20 components Solid Pine Lattice Moulding Oak Board 4 buy 10 2 21010 Oak board 4 buy 10 WM 266 1/4 in. x 1-1/2 in. x 96 in. 1 in. x 2 in. x R/L; Actual: 0.75 in. x 1.5 in. x R/L) 2 21015 21020 screw Copper Sheet NO buy Buy 2 10 36 in x 36 in. Solid Aluminium sheet with Anodized Copper finish Connect copper sheet to converter 2 21025 Connector/wire N buy 2 1) A BOMtable is given below for an air purifier, your task is to create your own production route sheet and draw a precedence diagram. How many work stations are the best to achieve great production efficiency at low cost for start-up production (aty. 1k/month)? Note: make certain assumption if needed. Level Part name Part No. Description Qty. Make/Buy Comment Time Min. 0 00001 1 Make 1 1 1 1 1 1 Air Purifier Air purifier for a room of capacity 540 ft2 Body Assembly 3 subcomponents Upper case Lower case Cloth pre filter Cloth over lower case 10000 10005 10010 10015 buy buy buy buy 1 1 2 20000 3 components 1 Make NNN 20005 20010 20015 Upper case assembly fan electrical box Power switch & cord In the upper case In upper case On upper case 1 1 1 Buy Buy Buy 5 10 2 3 30000 1 make electrical assembly In electrical box, 7 components 3 30006 1 Buy 1 80- T110C106K075A T 3 30010 1 Buy 1 3 30015 1 Buy 1 Capacitor Tantalum, non- polarized, 75VDC, 10 uF capacitor (For 48V Supply) Resistor 1 1KO, 1/2W, 230 V, metal film resistor (For 48V Supply) Resistor 2 9000, 1/2W, ZOV, met al film resistor (For 48V Supply) Fuse Mount AC Power Entry Modules INLET FUSED SCRW MNT 12V PCB Mount 12V AC/DC Power Modules AC-DC, 3W, PCB MOUNT, ENCAPSULATED Barrier Strip 12P Barrier Strip Converter 48V Boost Converter 71- CMF551K0000B EEK 71- CMF55900ROOB HEB 562-719W-0003 3 30020 3 Buy 2 3 30025 1 Buy 2 209-VCEOUS12 30030 3 3 1 1 Buy Buy 2 3 571-115463062 PICO 128M48S 30036 N 21000 Inner frame set 1 make 2 21006 Wood beam In lower case, 20 components Solid Pine Lattice Moulding Oak Board 4 buy 10 2 21010 Oak board 4 buy 10 WM 266 1/4 in. x 1-1/2 in. x 96 in. 1 in. x 2 in. x R/L; Actual: 0.75 in. x 1.5 in. x R/L) 2 21015 21020 screw Copper Sheet NO buy Buy 2 10 36 in x 36 in. Solid Aluminium sheet with Anodized Copper finish Connect copper sheet to converter 2 21025 Connector/wire N buy 2

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
