Question: 1 . A piston having a cross - sectional area of 0 . 0 9 m 2 is located in a cylinder containing water as

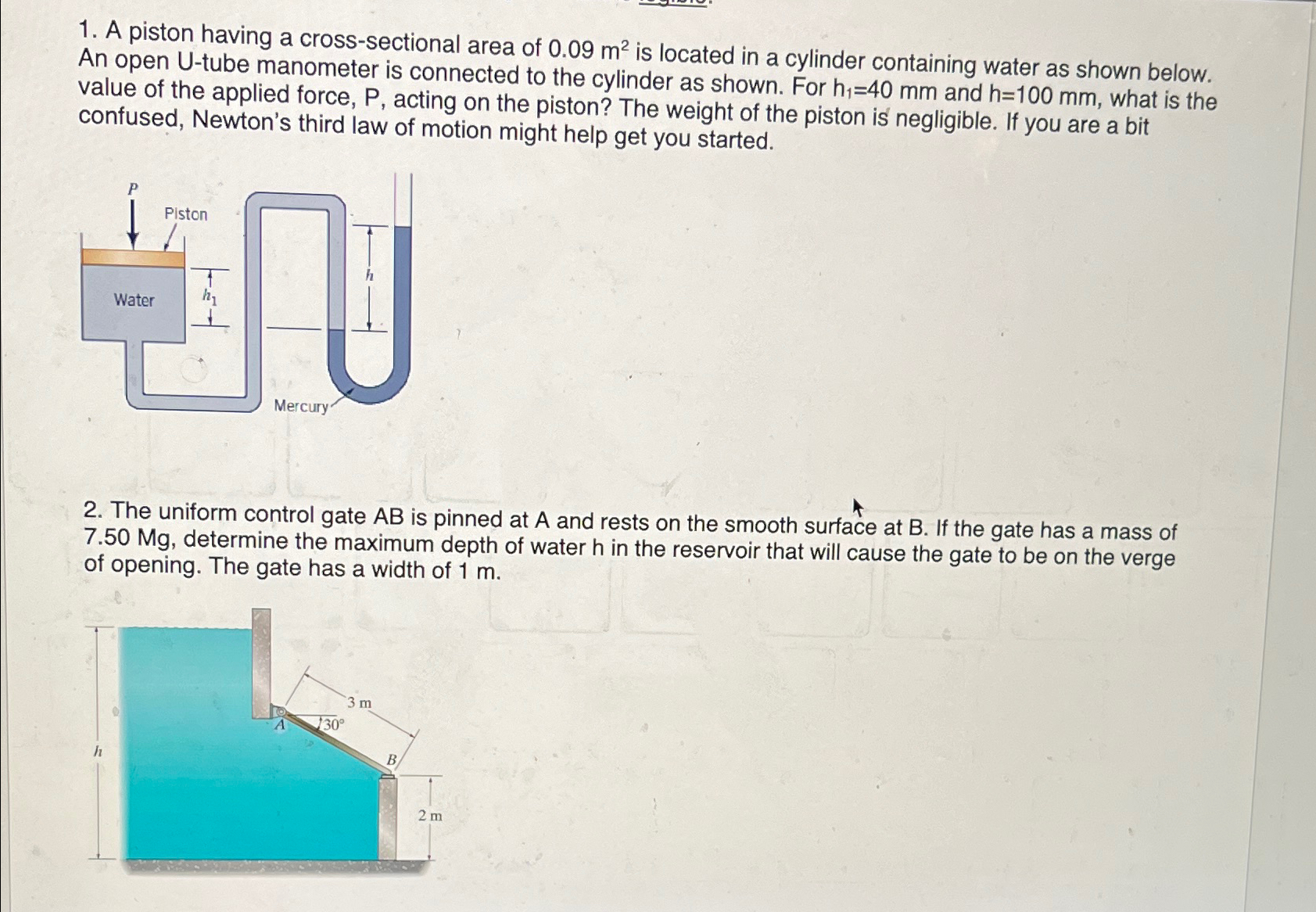

1. A piston having a cross-sectional area of 0.09m2 is located in a cylinder containing water as shown below. An open U-tube manometer is connected to the cylinder as shown. For h1=40mm and h=100mm, what is the value of the applied force, P, acting on the piston? The weight of the piston is negligible. If you are a bit confused, Newton's third law of motion might help get you started.
2.The uniform control gate AB is pinned at A and rests on the smooth surface at B. If the gate has a mass of 7.50Mg, determine the maximum depth of water h in the reservoir that will cause the gate to be on the verge of opening. The gate has a width of 1m.
Need both, show all work
1 . A piston having a cross - sectional area of 0
