2.8.7(WP) A piston having a cross-sectional area of 0.07m2 is located
in a cylinder containing water, as shown in Fig. P2.8.7. An open
U-tube manometer is connected to the cylinder as shown. For h1=
60 mm and h=100mm, what is the value of the applied force, P,
acting on the piston? The weight of the piston is negligible.

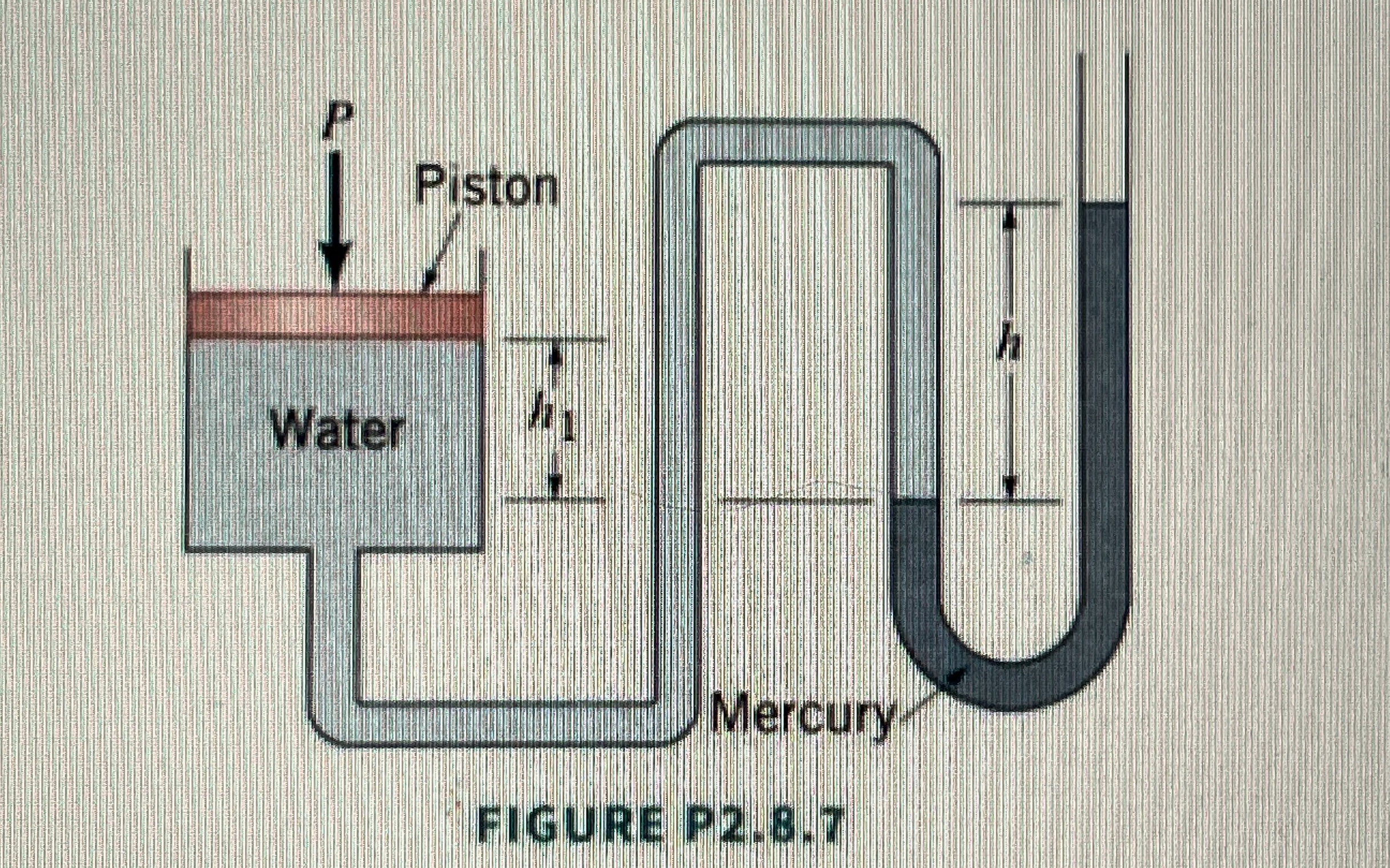

FIGURE P2.8.7
2 . 8 . 7 ( WP ) A piston having a cross -
