Question: 1. A project is being planned where Activities A, E and H will take 2 weeks; Activities B, C and G will take 4 weeks

1. A project is being planned where Activities A,

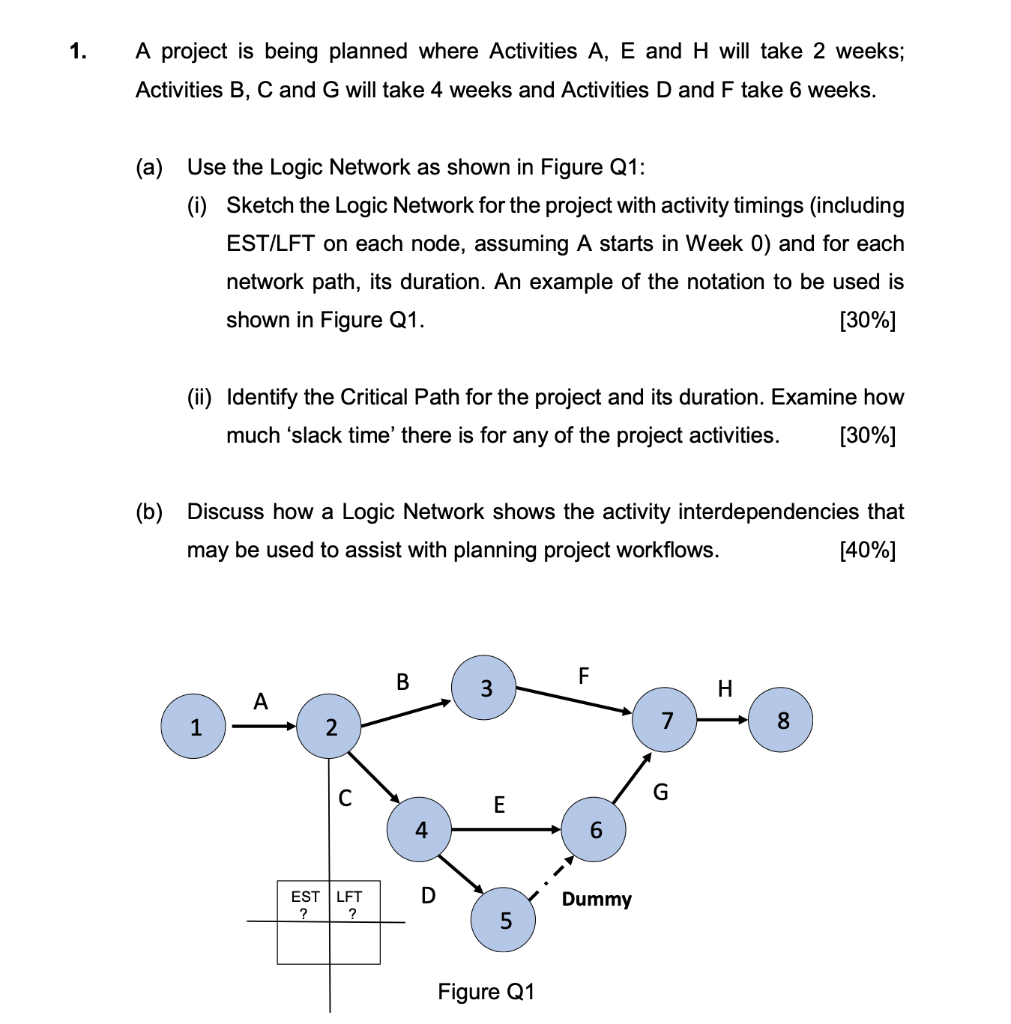

1. A project is being planned where Activities A, E and H will take 2 weeks; Activities B, C and G will take 4 weeks and Activities D and F take 6 weeks. (a) Use the Logic Network as shown in Figure Q1: (i) Sketch the Logic Network for the project with activity timings (including EST/LFT on each node, assuming A starts in Week 0) and for each network path, its duration. An example of the notation to be used is shown in Figure Q1. [30%] (ii) Identify the Critical Path for the project and its duration. Examine how much slack time' there is for any of the project activities. [30%] (b) Discuss how a Logic Network shows the activity interdependencies that may be used to assist with planning project workflows. [40%] B F 3 H A 1 2 7 8 G E . 6 D EST LFT ? ? Dummy 5 Figure Q1

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
