Question: 1 . A simple supported beam with circular cross section of diameter of 5 cm as having a concentrated load and a uniformed distributed load

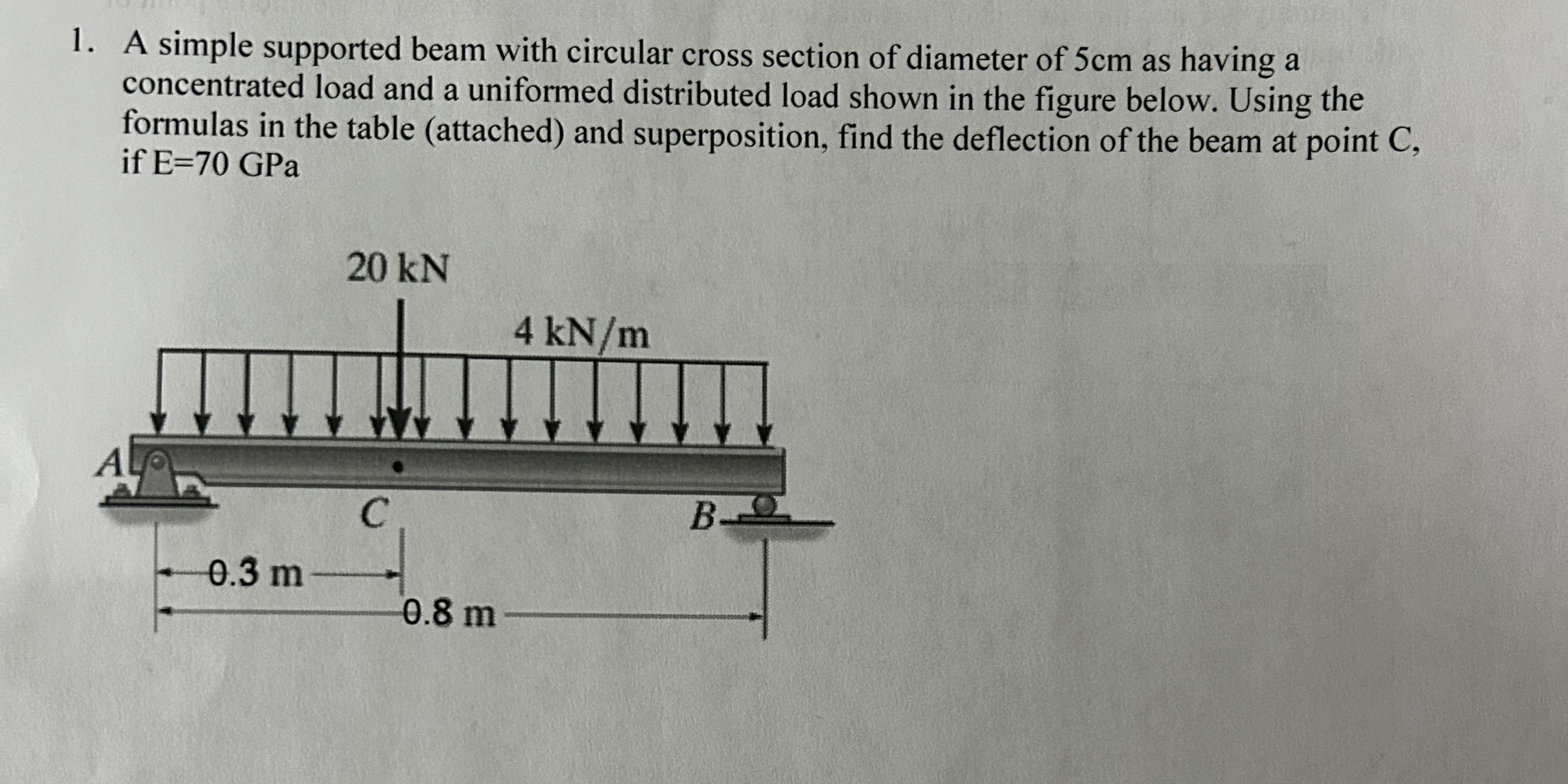

1. A simple supported beam with circular cross section of diameter of 5 cm as having a concentrated load and a uniformed distributed load shown in the figure below. Using the formulas in the table (attached) and superposition, find the deflection of the beam at point \( C \), if \(\mathrm{E}=70\mathrm{GPa}\)
1 . A simple supported beam with circular cross

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
