Question: 1 . A toroidal core having a cross sectional area of ( 0 . 2 mathrm { ~cm } ^ { 2 }

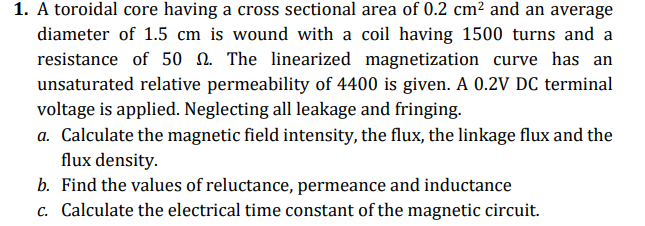

1. A toroidal core having a cross sectional area of \(0.2\mathrm{~cm}^{2}\) and an average diameter of 1.5 cm is wound with a coil having 1500 turns and a resistance of \(50\Omega \). The linearized magnetization curve has an unsaturated relative permeability of 4400 is given. A 0.2 V DC terminal voltage is applied. Neglecting all leakage and fringing.
a. Calculate the magnetic field intensity, the flux, the linkage flux and the flux density.
b. Find the values of reluctance, permeance and inductance
c. Calculate the electrical time constant of the magnetic circuit.
please solve clearly truly and with hand.
1 . A toroidal core having a cross sectional area
