Question: 1 . An angle with staggered fasteners in each leg is shown in the figure. A 3 6 steel is used, and holes are for

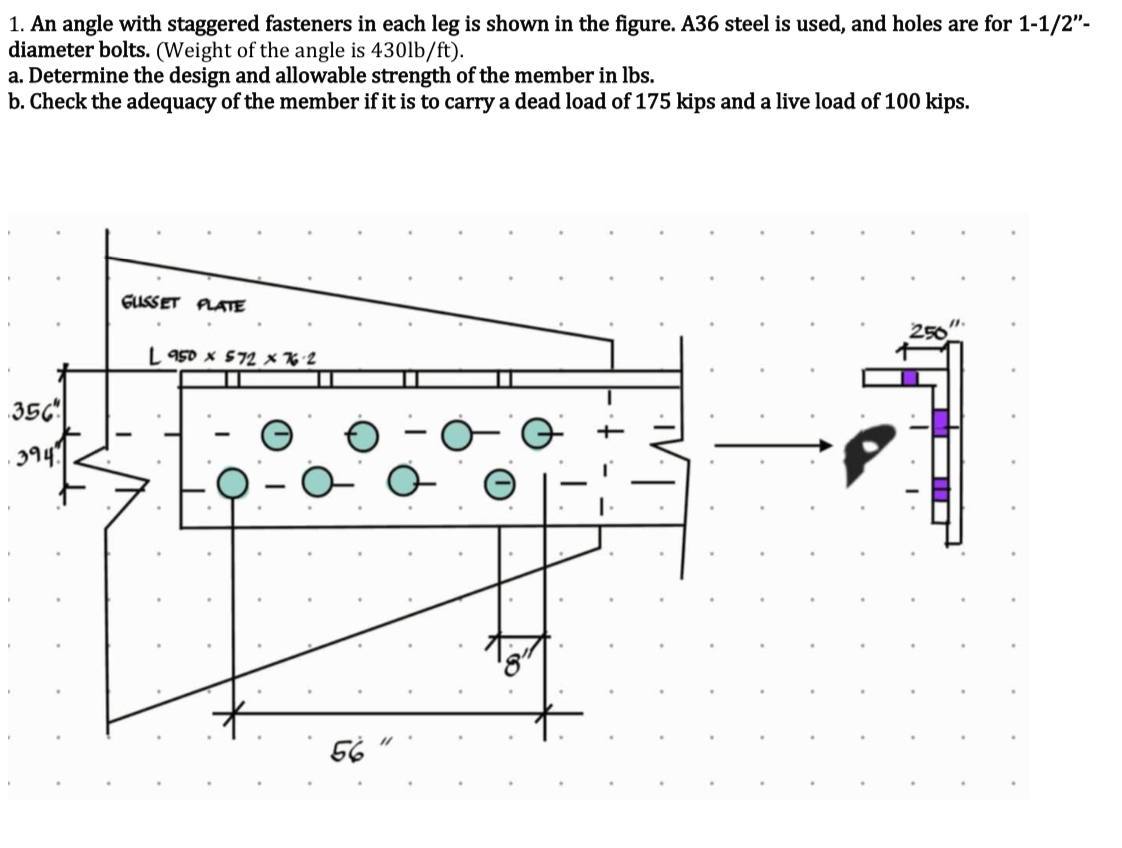

1. An angle with staggered fasteners in each leg is shown in the figure. A36 steel is used, and holes are for 1-1/2"diameter bolts. (Weight of the angle is \(430\mathrm{lb}/\mathrm{ft}\)).
a. Determine the design and allowable strength of the member in lbs.
b. Check the adequacy of the member if it is to carry a dead load of 175 kips and a live load of 100 kips.
